DIGITAL - Iconics Suite GOT project conversion to Iconics Screens

Iconics Suite - GOT project conversion to GraphWorX64 screens


Summary: this document describes how to convert existing GT designer project to Iconics GraphWorX files


Launch GENESIS64 Converter-GOT from Windows Start > ICONICS Tools, specify your GTX project file and fill in a few other settings. The tool will produce one or more GraphWorX64 display files (GDFX) and, if necessary, a CSV file that can be imported into the Mitsubishi Electric FA Connector.

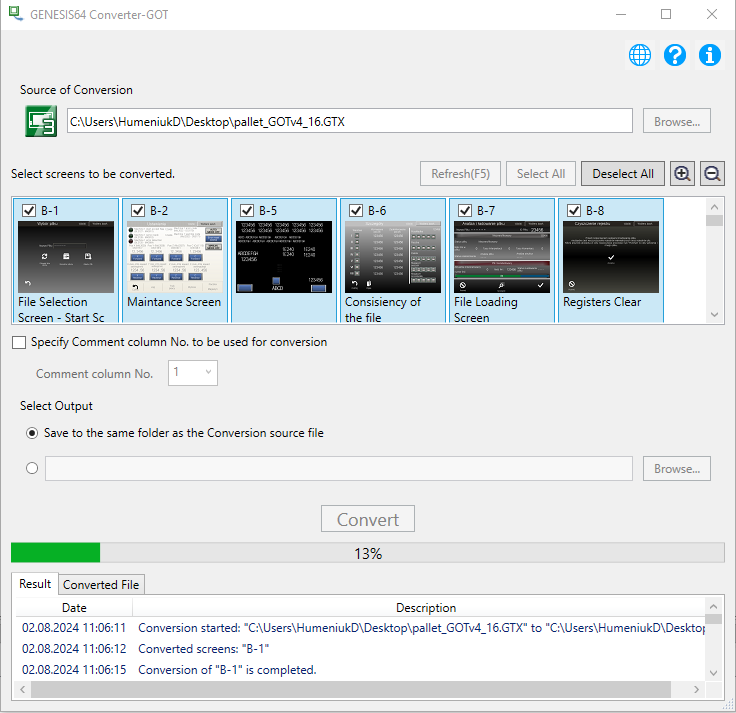

Select the file to conver
If project has more than one screen, select which of existing screens you want to convert

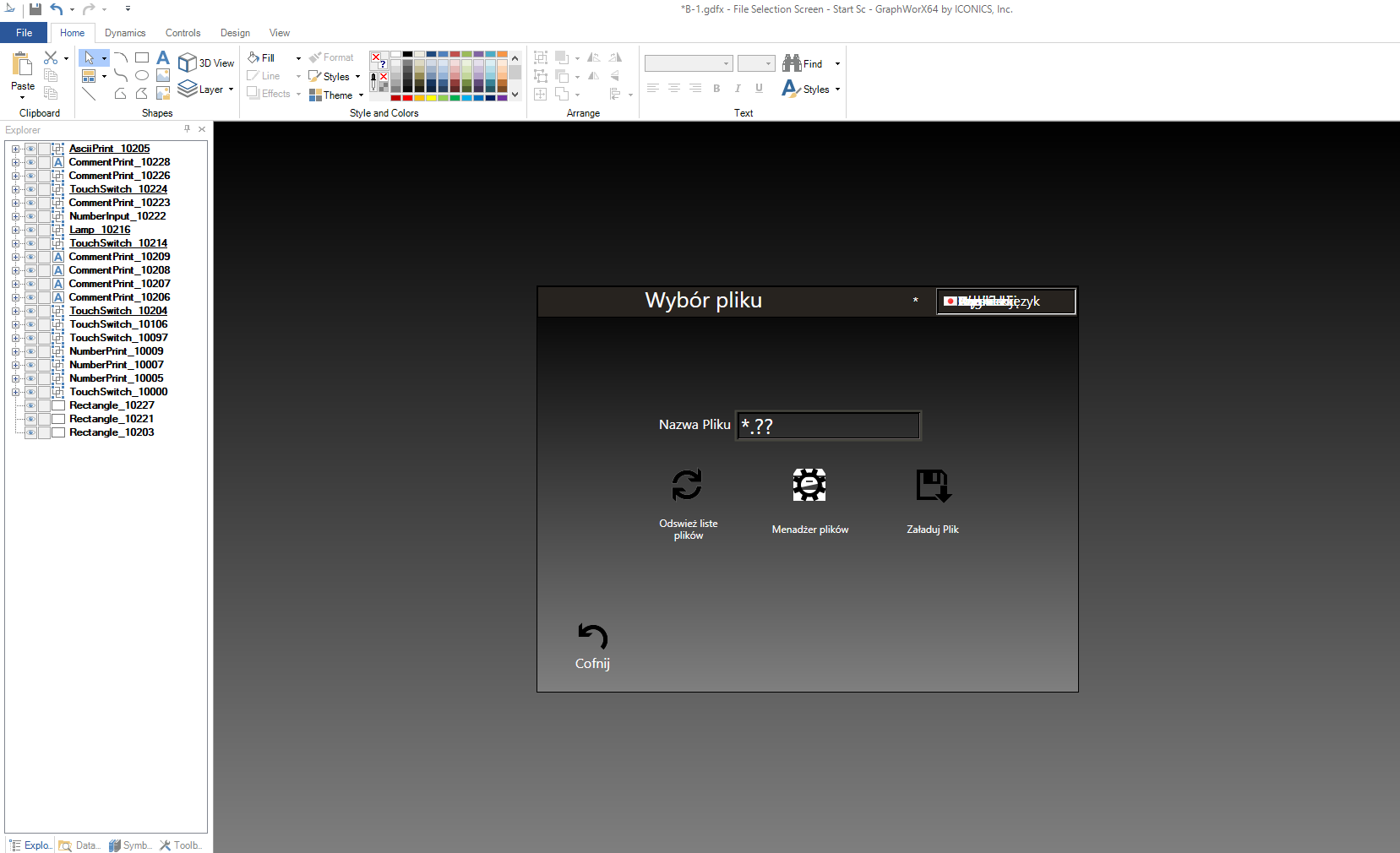

After execution of operation open created file and check if result satisfies you
If not, make the necessary changes manually
