Info
This article lists all the built-in GraphWorX displays available in the PubDisplay folder after GENESIS V11 installation. The display files are also attached as a backup for users.

GENESIS V11 has multiple built-in GraphWorX displays already present in the web server (PubDisplay) folder after installation. By default the location of this folder is:

C:\ProgramData\ICONICS\11\PubDisplay

Other important information:
  1. Some of the displays were already present in previous GENESIS versions, but some are new or updated, so the list below is fully valid for V11 only
  2. When using a desktop GraphWorX client application, some of the displays can be directly accessed from buttons located on the toolbar in Runtime. All can be used as target for a Load Display command or in GraphWorX Viewer controls like any standard display
  3. All the displays are standard .gdfx files which can be edited to adjust to your needs if necessary. Keep a backup in case you break or delete them!

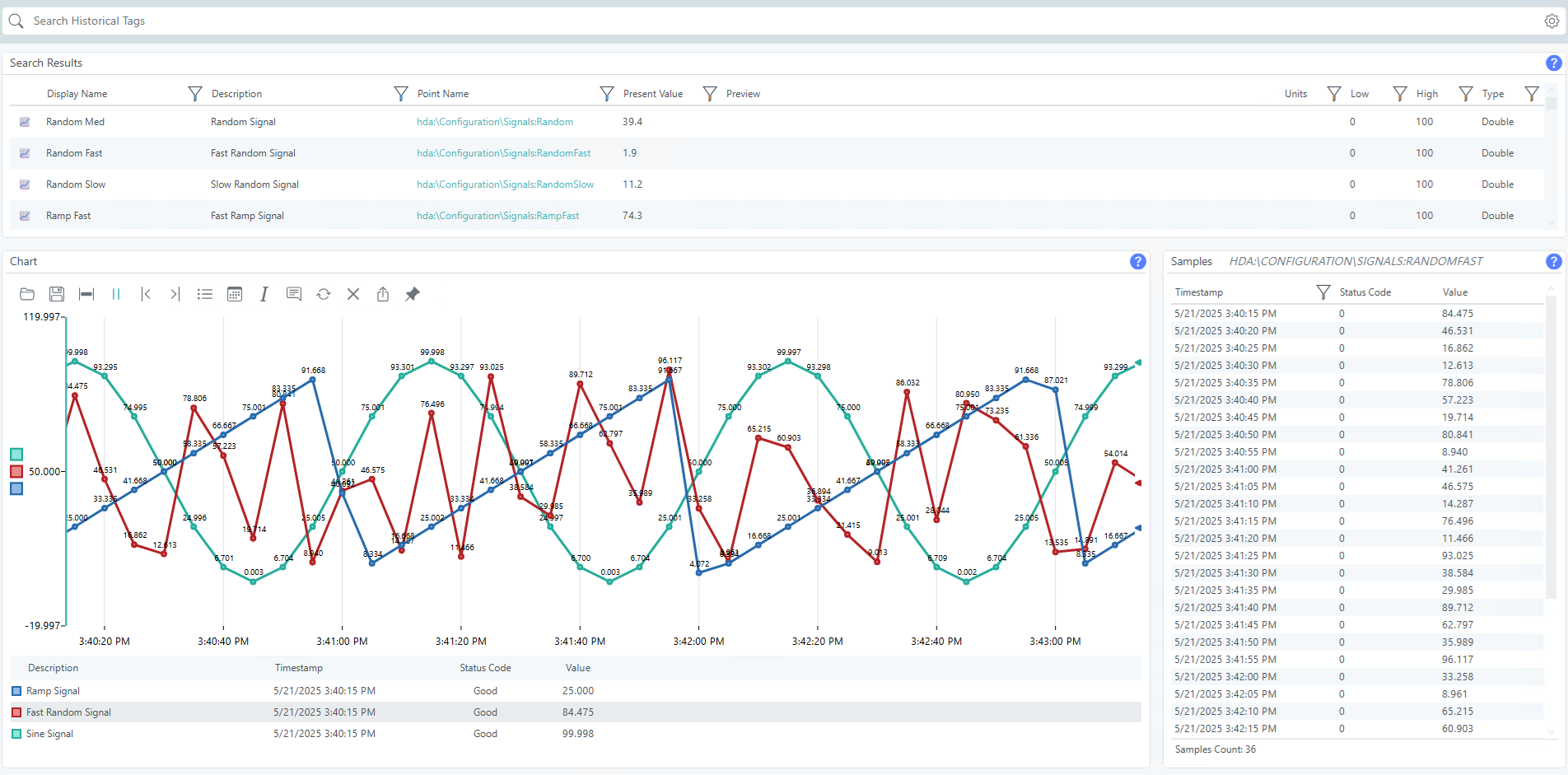

GwxHistoryExplorer - Explorer of Data Historian tags

This display contains a list of all historical tags configured in your project, showing their name, description, current value and other parameters, as well as a search bar. Right-clicking on a tag allows the user to add it to a trend viewer. After selecting a trend, samples from the same period are also listed in a table. Trends can be easily reconfigured and frozen, with a cursor, data export and operator comment options also available. This display can be used as a quick dashboard for all historical data or an example of those functionalities to be utilized in your other displays.


Notes
The trend and table control have sampling interval parameters, which determine how many samples of each historical tag are displayed. If you want to display more or less samples, adjust them to your needs.

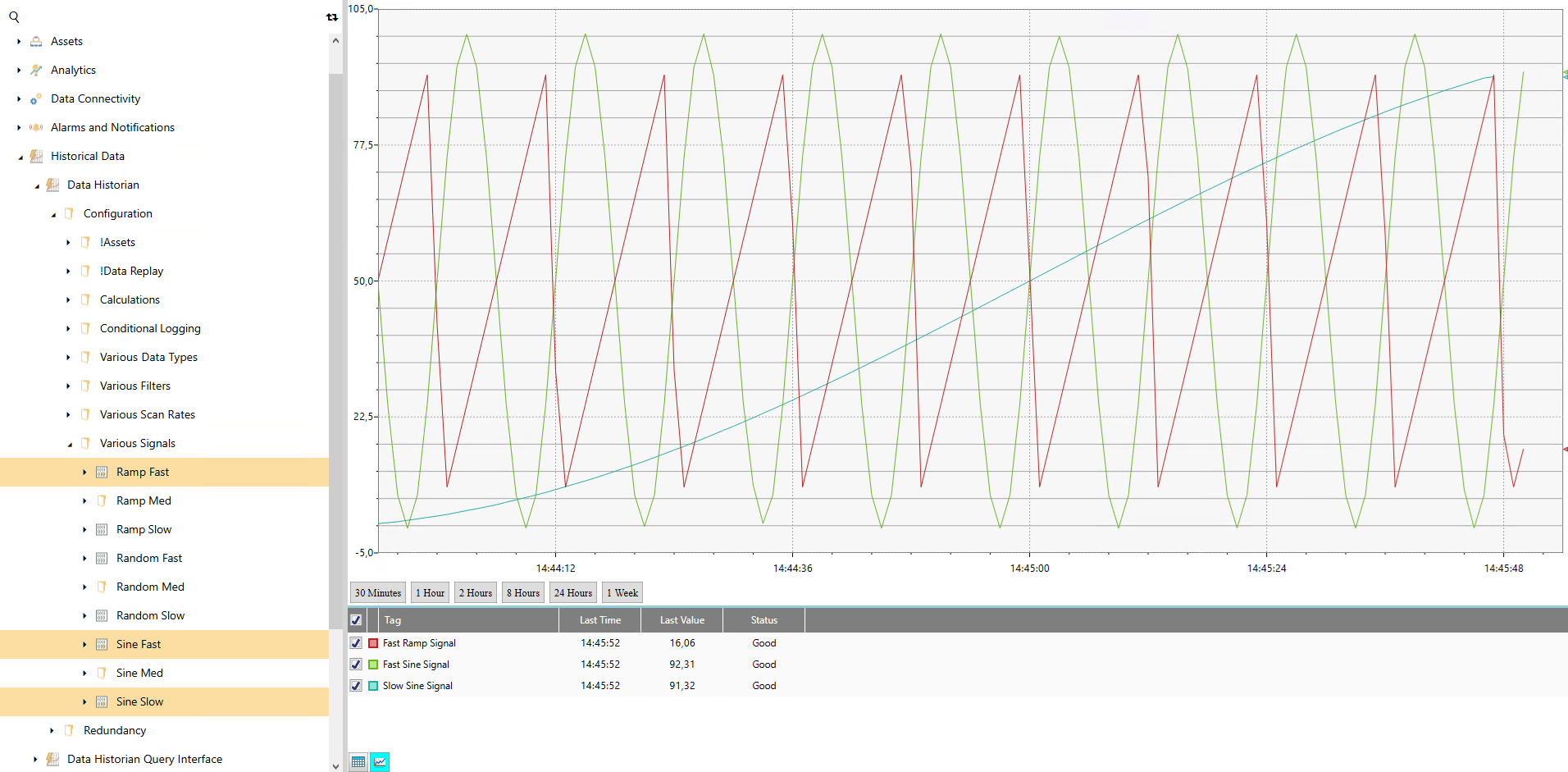

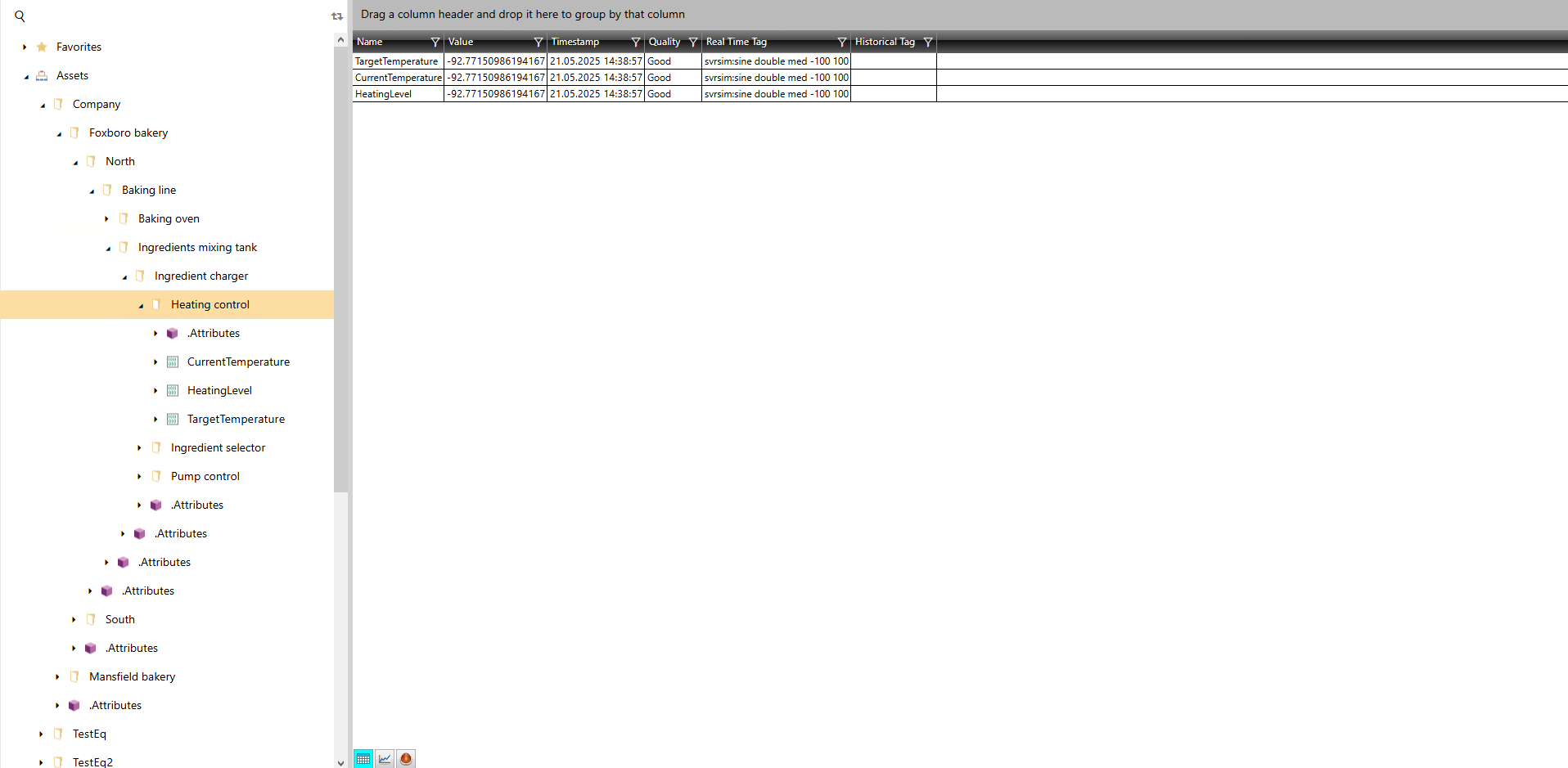

GwxDataExplorer - Explorer of real-time data

This display contains an embedded Data Explorer, allowing the operator see real-time data values and their status, display them as trends and check the associated alarms.

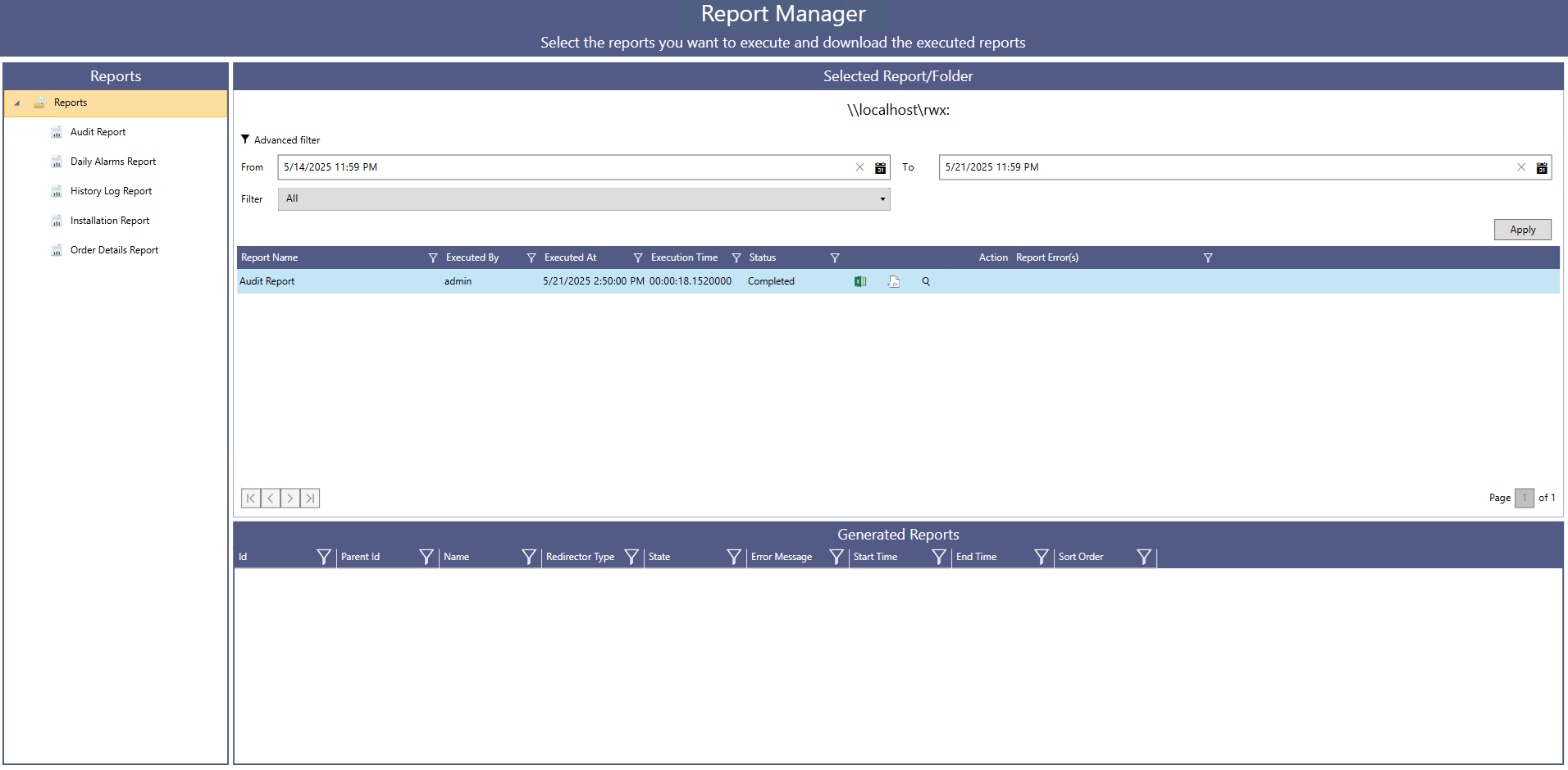

GwxReporting - Report Manager

This display allows the operator to see all available reports, execute them with desired parameters and download generated reports as PDF, Excel or other available file types.

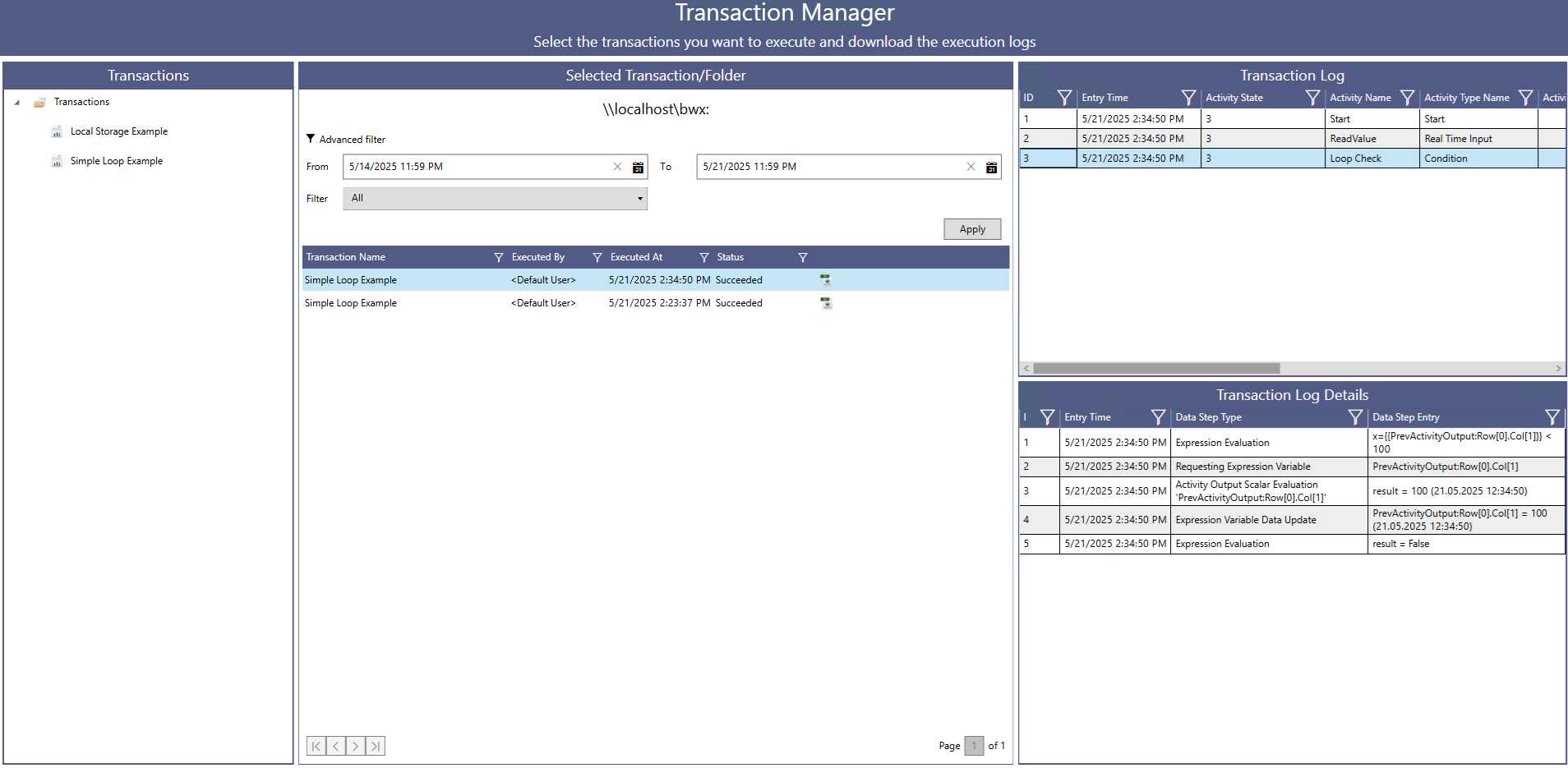

GwxBridging - Transaction Manager

This display allows the operator to see all available Bridging transactions, execute them manually, see their execution logs and download them as XML files.


Notes
If a transaction is executed but doesn't return any logs, make sure logging is enabled in the transaction settings in Workbench.

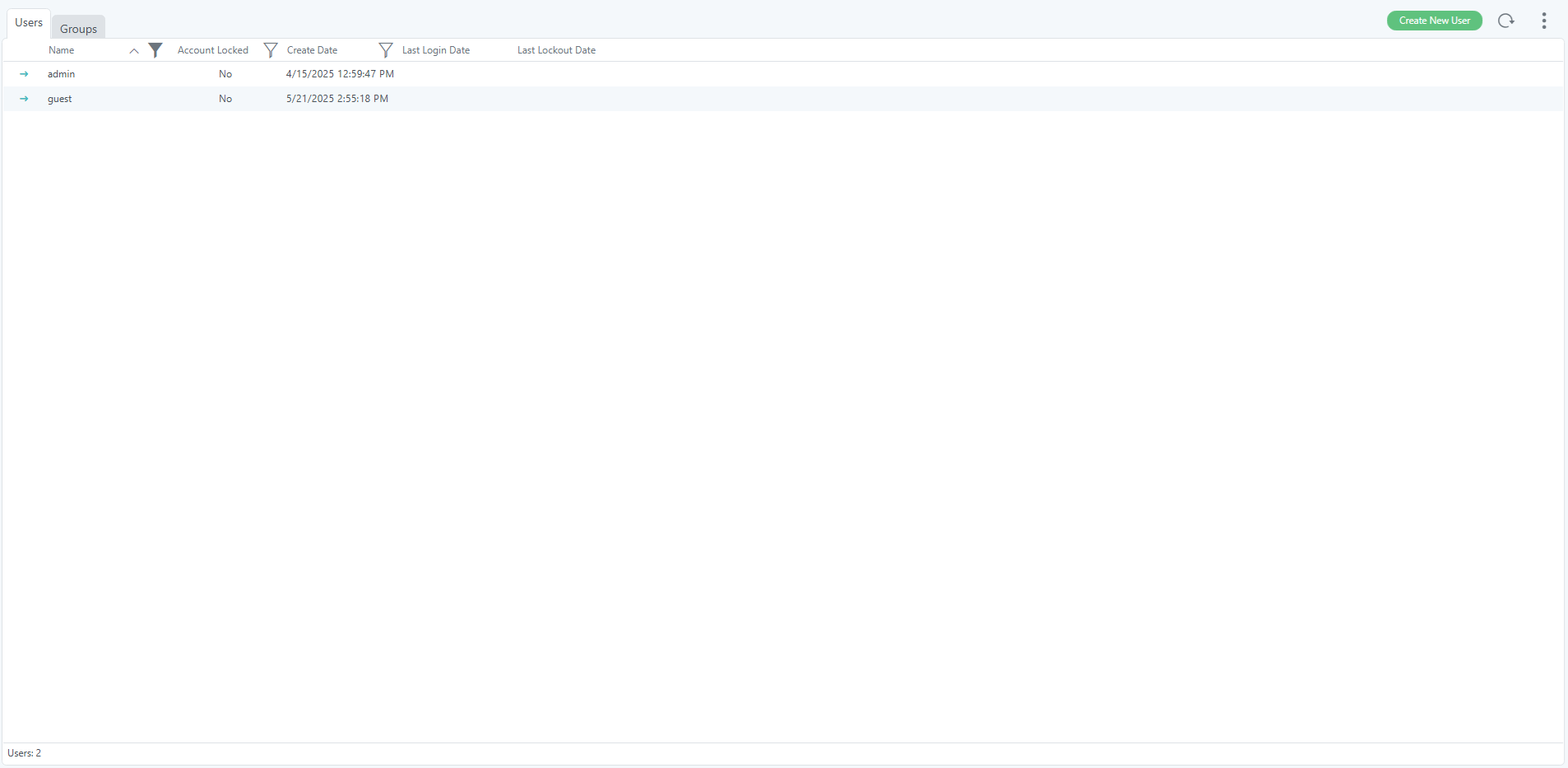

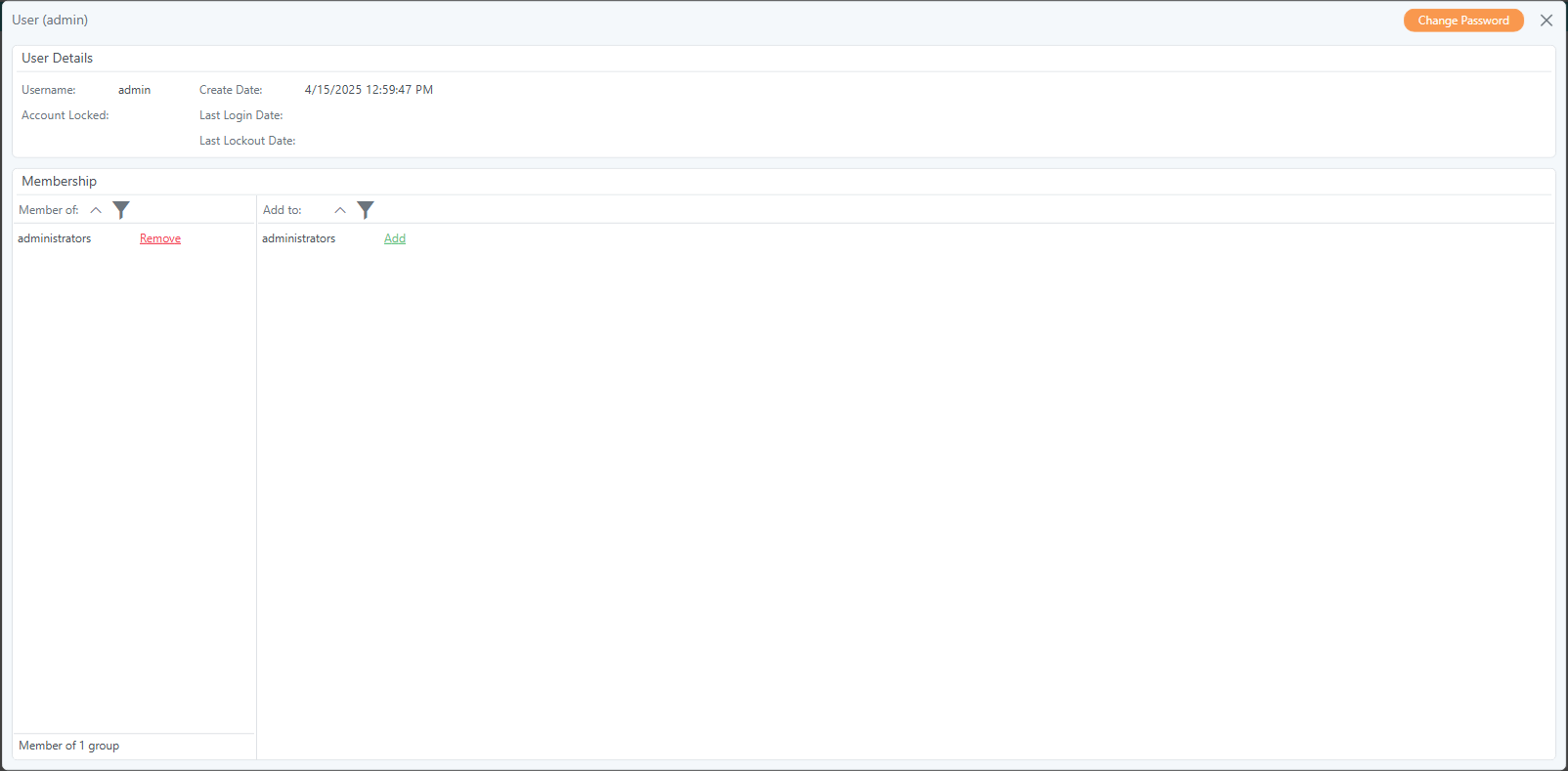

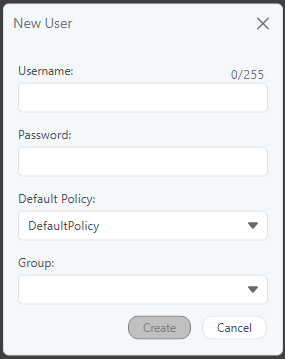

GwxSecurityConfiguration - Users & Groups Manager

This display allows an operator with security management rights to create new user accounts, edit their properties and assign them to available groups.





NotesThe setting changes made here are reflected in the project unified database and can be seen in Workbench after refreshing the project tree.

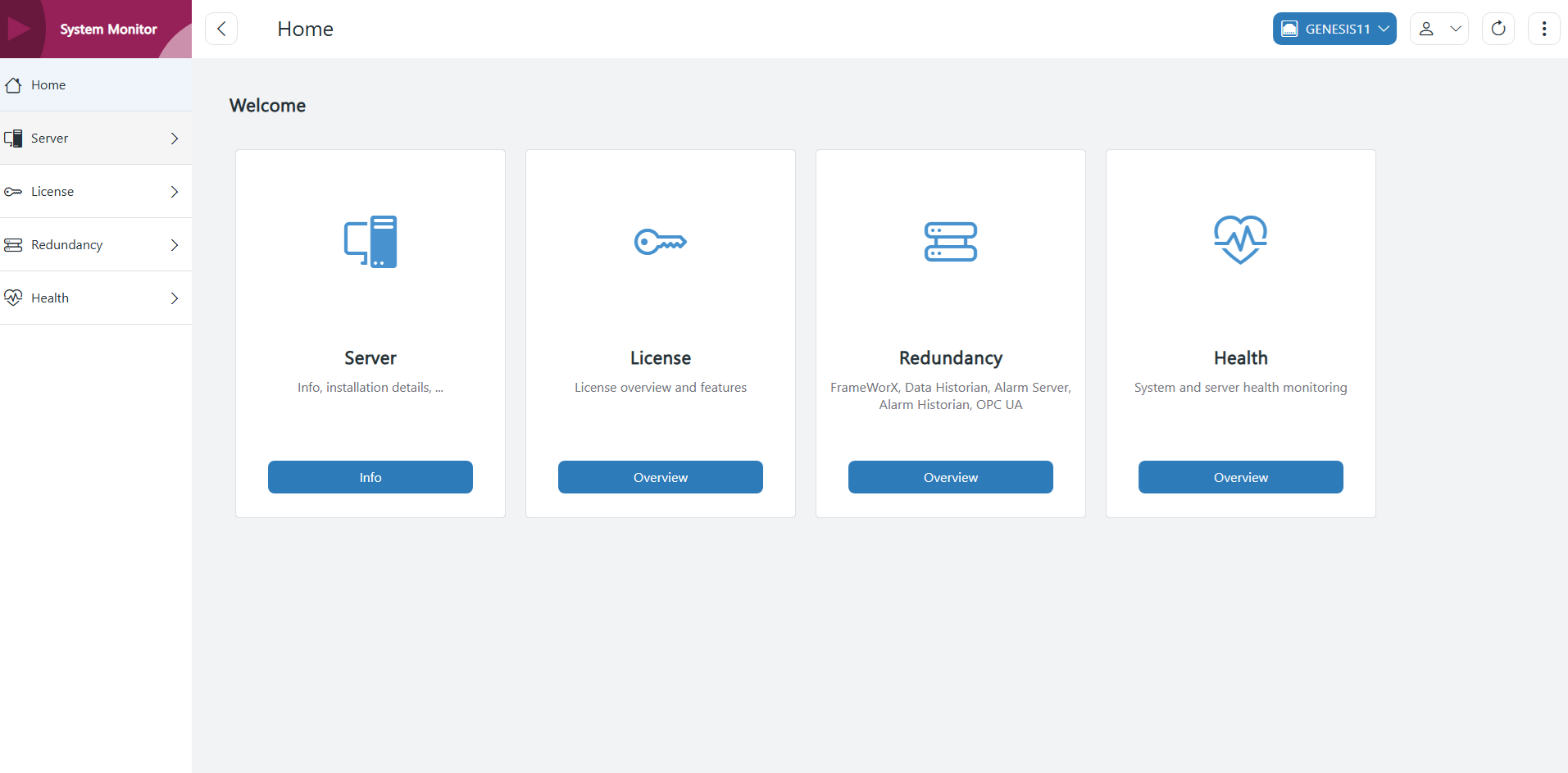

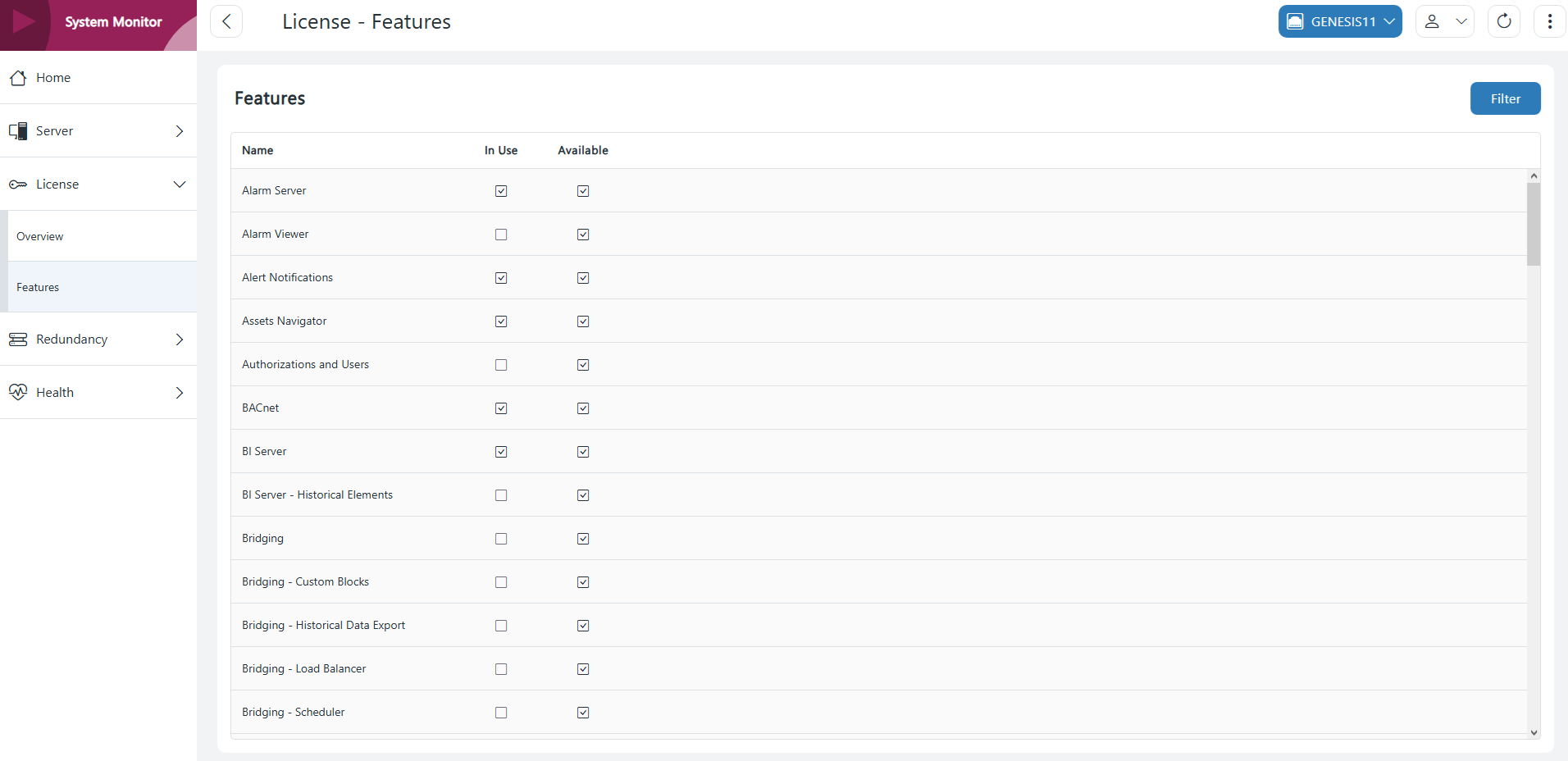

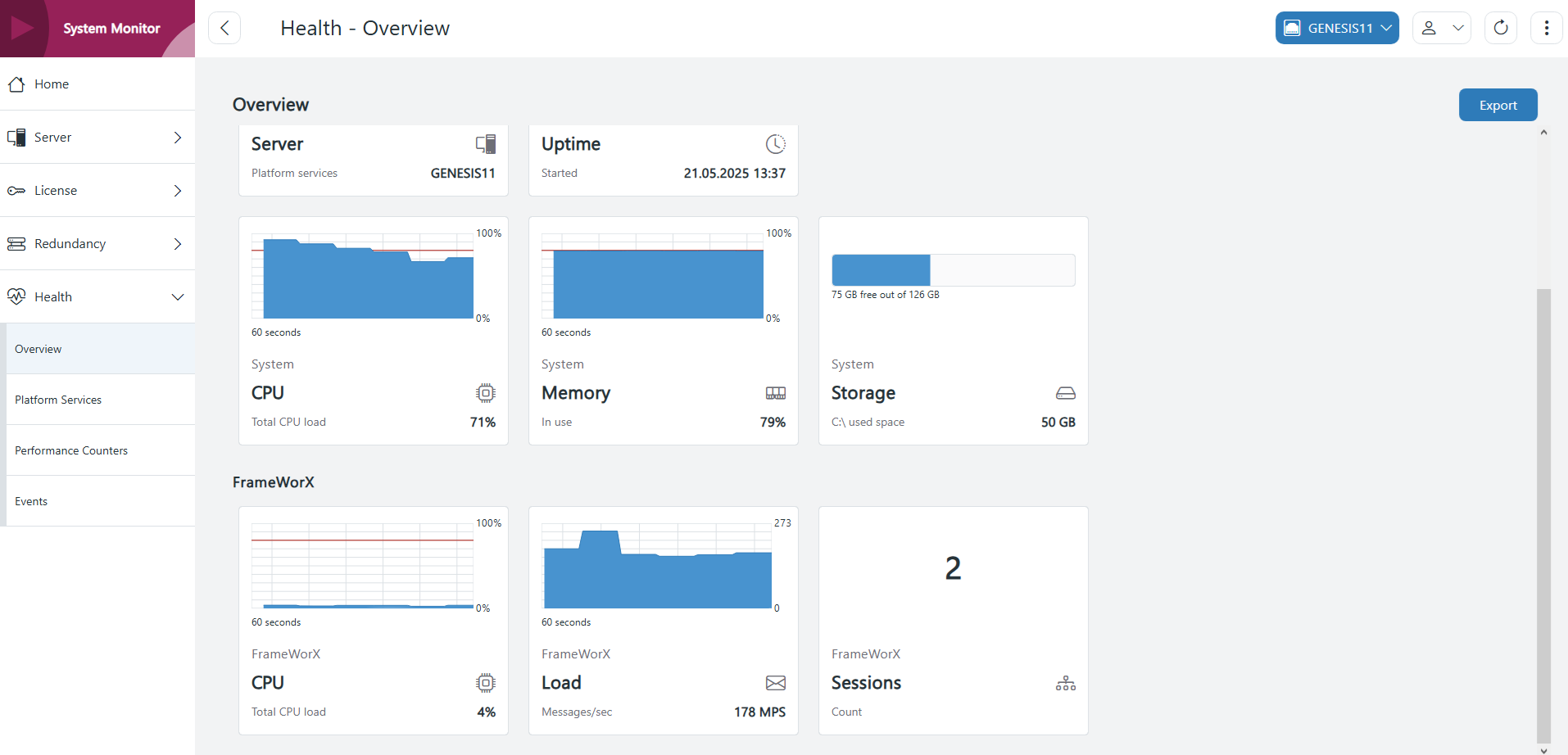

SystemMonitor - System information & diagnostics

New, redesigned version of Health Monitor displays showing license information, server load and system events for diagnostic purposes.




Notes
If some of the data in System Monitor is missing, make sure ICONICS Health Monitor Point Manager service is running.

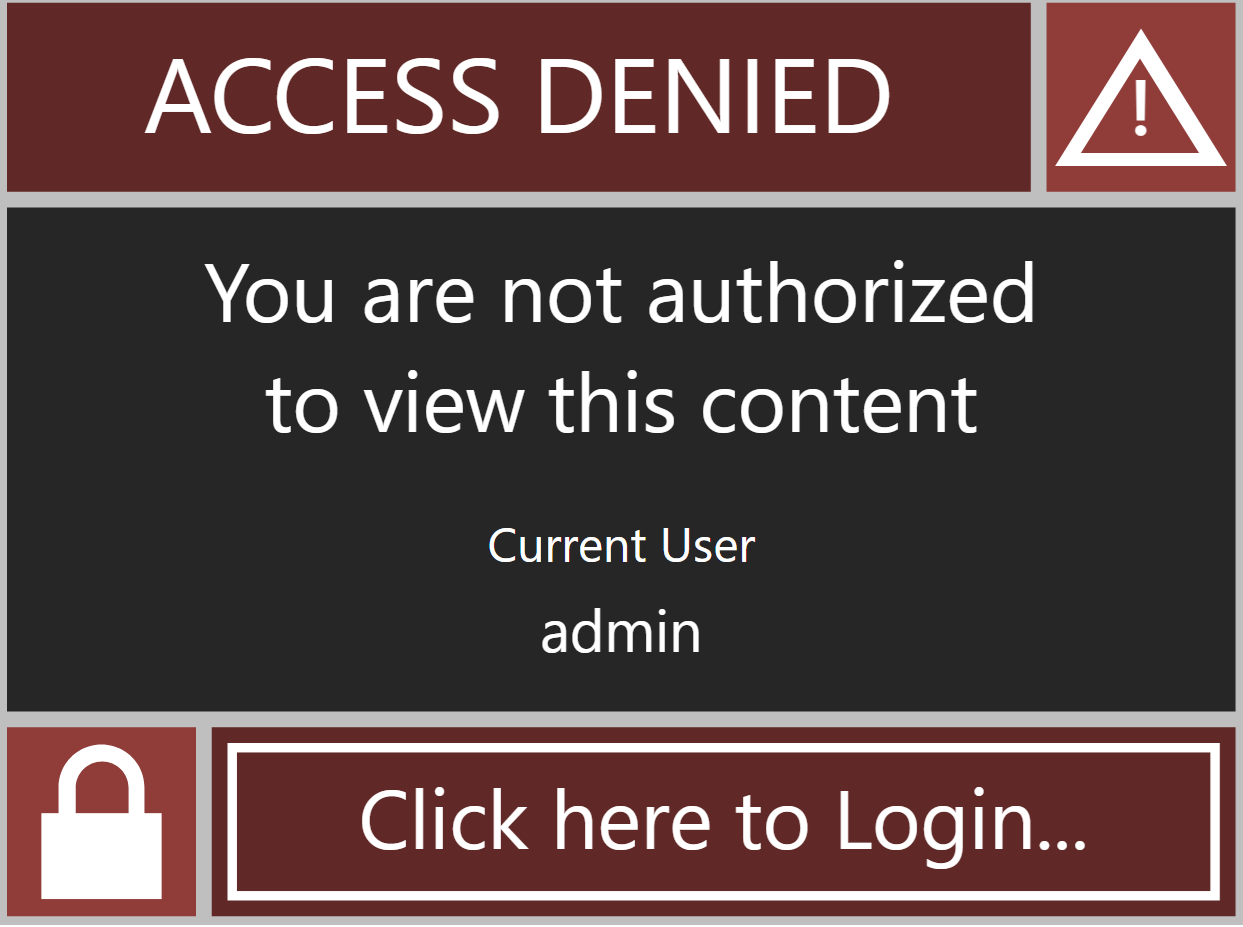

GwxFileAccessDenied - Access denied message window

This display is shown when a user tries to access a display which they don't have the security rights to see. It can be modified to suit your desired style.

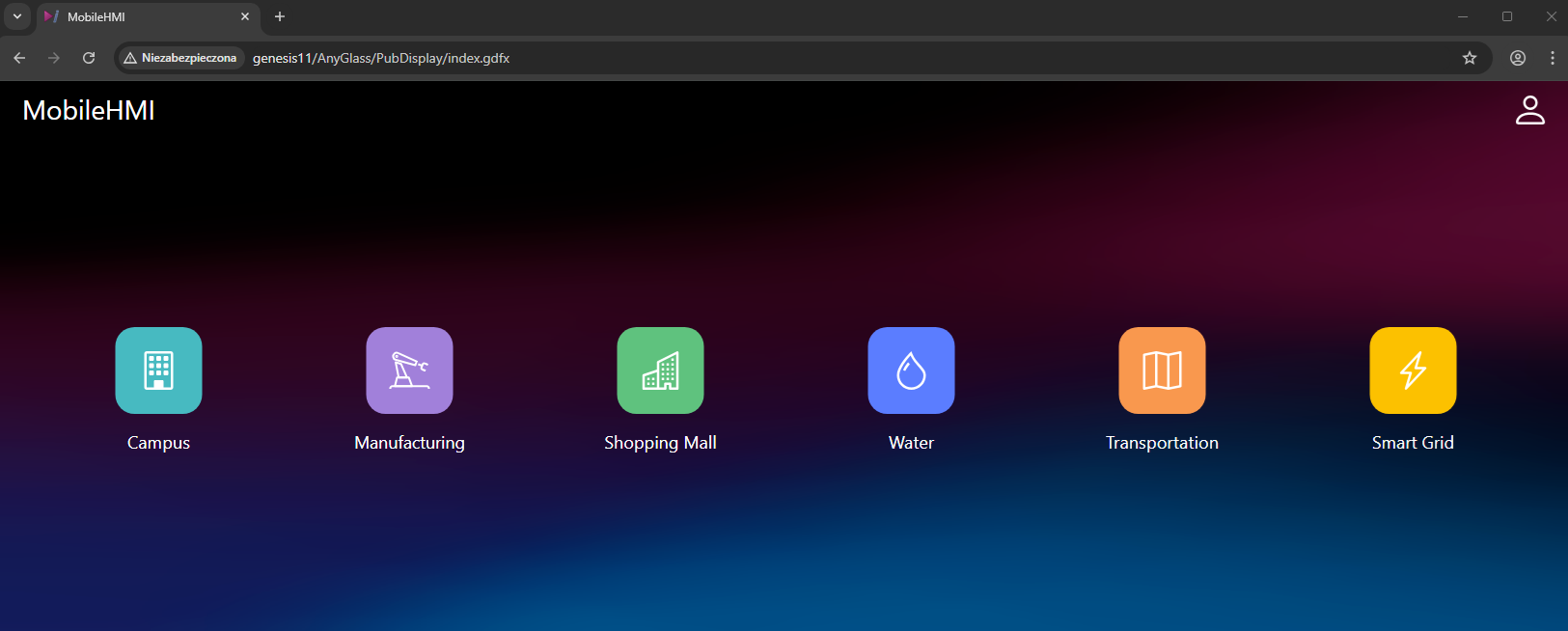

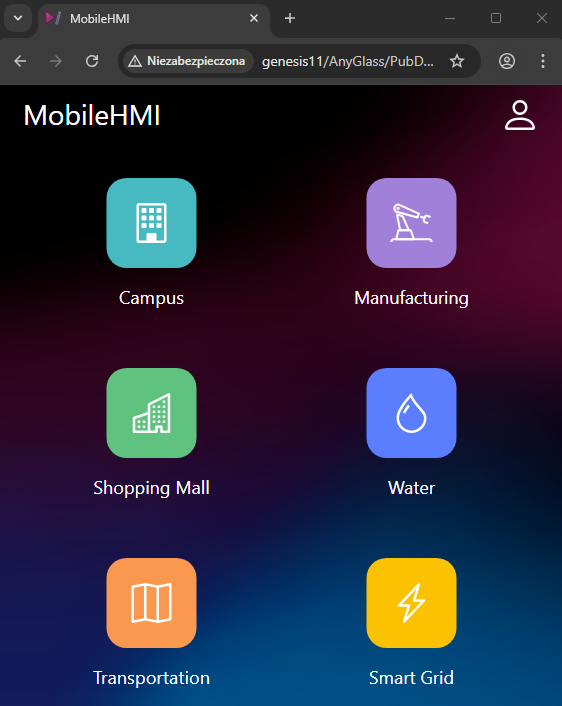

Index - Responsive navigation menu sample


A sample display containing responsive navigation tiles to use in mobile visualizations. You can freely edit it to add and/or modify the available buttons. By default the tiles lead to Citynext demo displays.

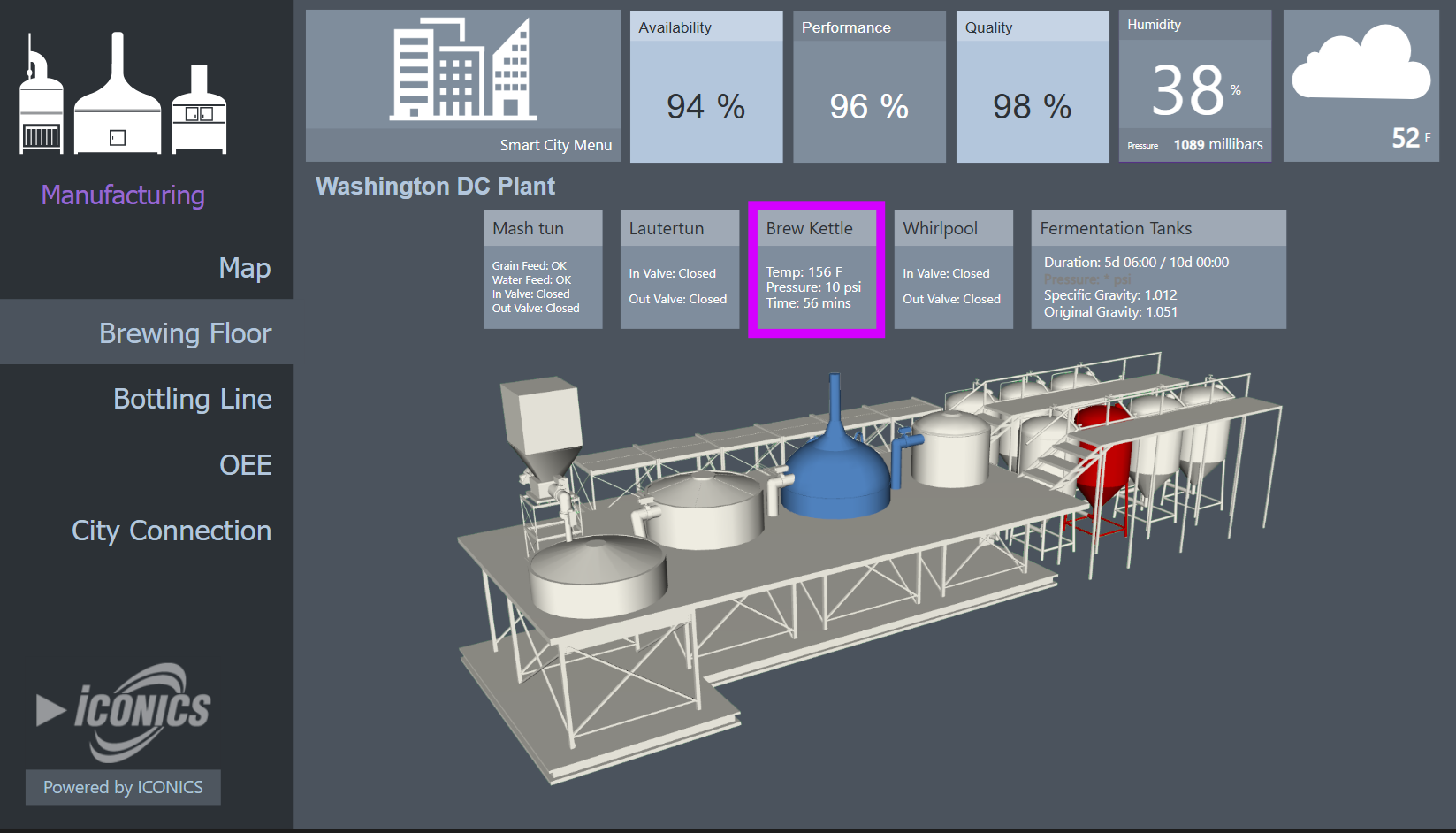

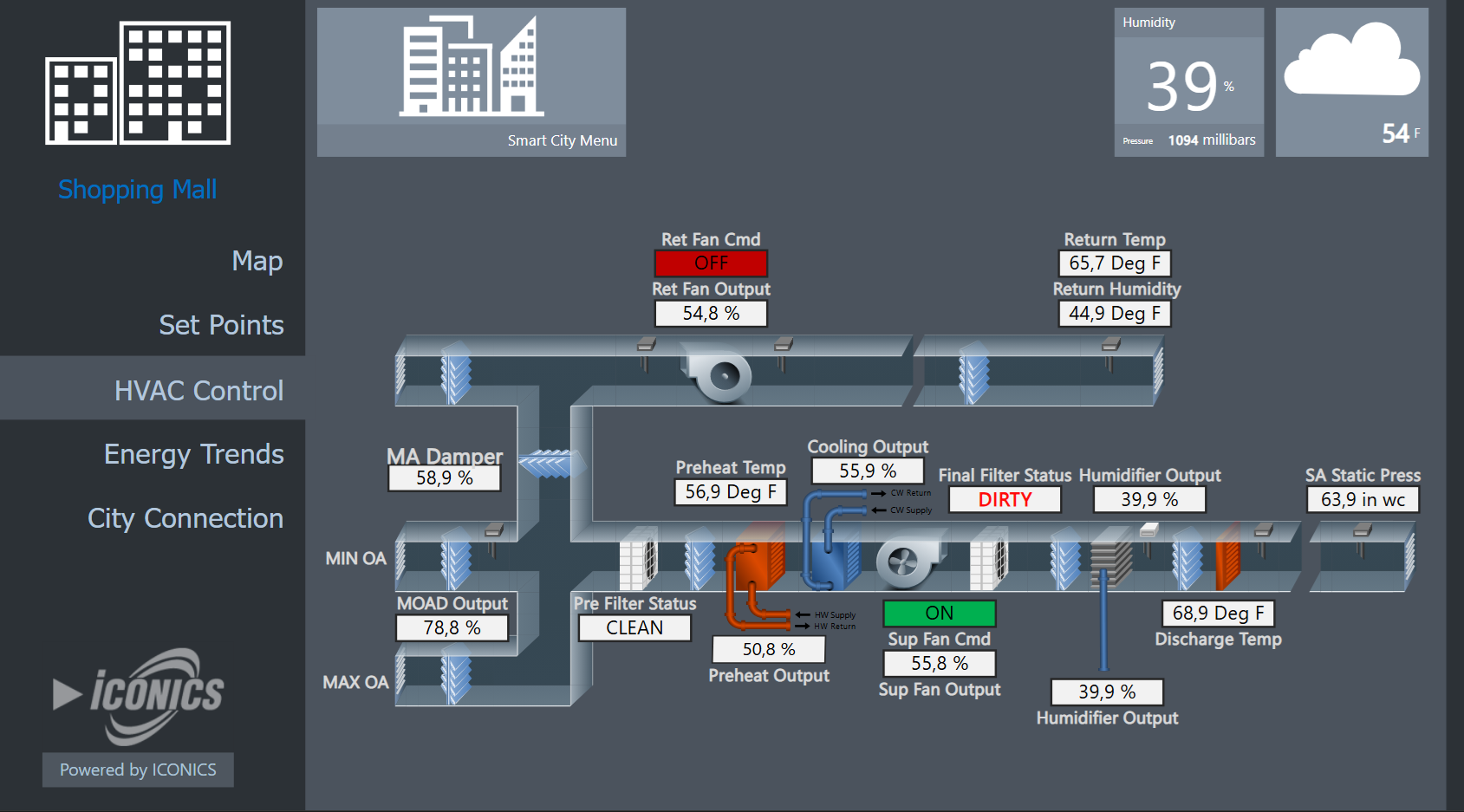

Citynext demo

A demo visualization of a smart city application utilizing simulated data, which can be used to showcase GENESIS.
