GOC43 - Communication - Modbus Master (Client)

GOC43 - Communication - Modbus Master (Client)

Info

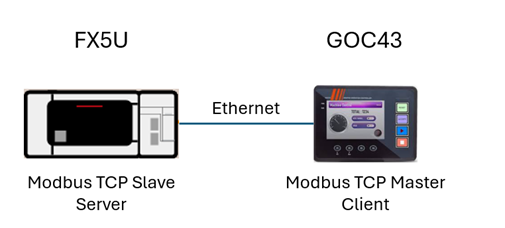

This article will guide you how to prepare GOC43 Modbus Client communication with FX5U (Modbus server) step by step.

Alert
Copyright © Mitsubishi Electric Europe B.V.

IMPORTANT !

These Function Blocks / programs are demo versions that are only  intended to demonstrate program functions and provide general orientation for  your software choices. They are not suitable for use in real applications! "

"Improper use of demo versions in applications can lead to serious malfunctions  and damage! Programs for real applications must always be configured for the  individual application by trained staff and tested thoroughly before being  used.

Mitsubishi Electric cannot assume any liability if these examples are used in real applications."




1. Setup GOC 43 Modbus TCP Master

1.1 Create new project

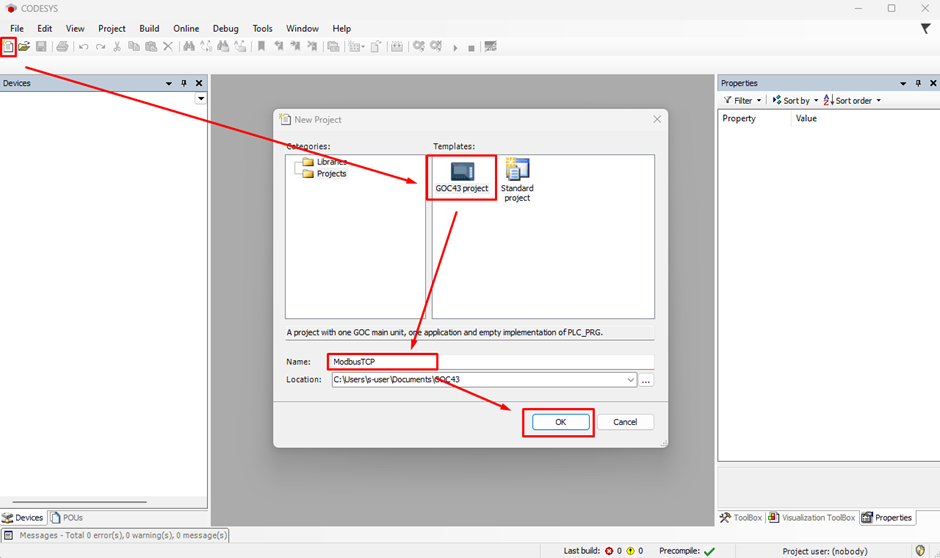

      Select template project icon and give a name to your project.

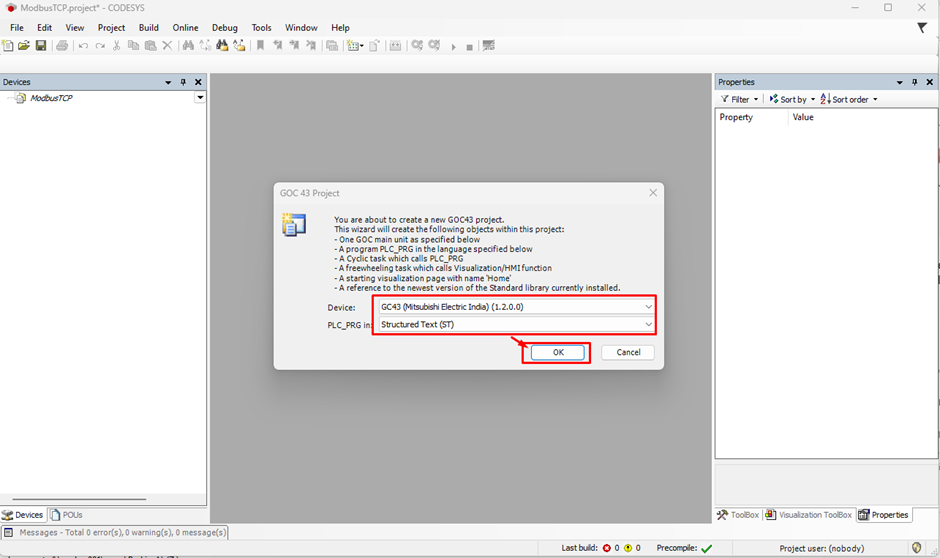

      Select the GOC43 target version , and prefered programming languages. (This example we won't write any line of code)


1.2 Add Modbus Master device to Communication

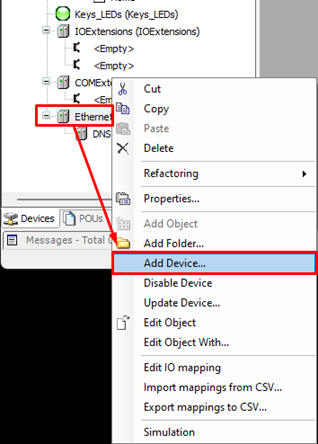

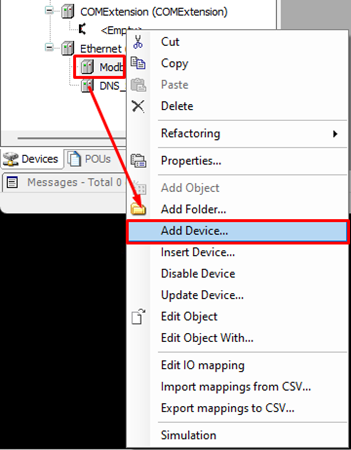

      Select Ethernet from the Devices tab of the left project tree with right mouse click. Chose Add device..

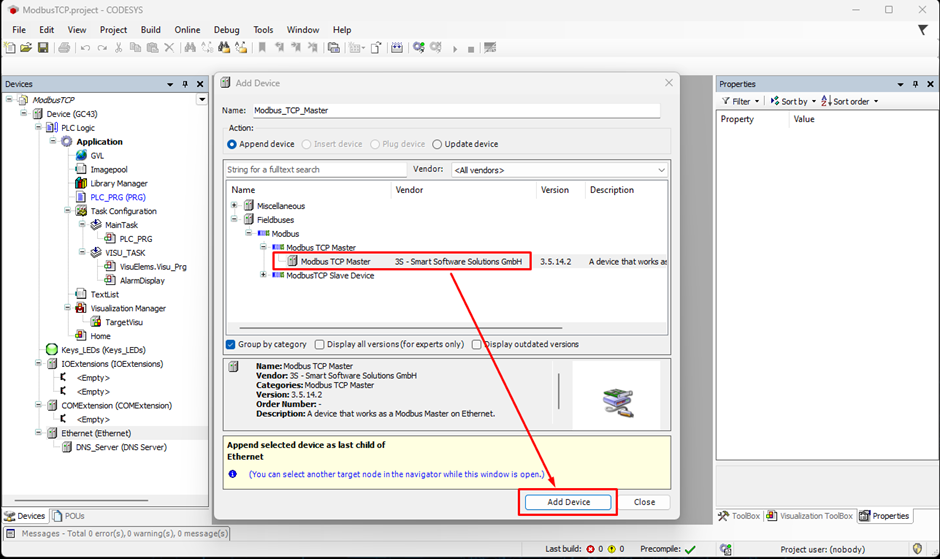

      From fielbuses tree find modbus master and add device to the Ethernet configuration.

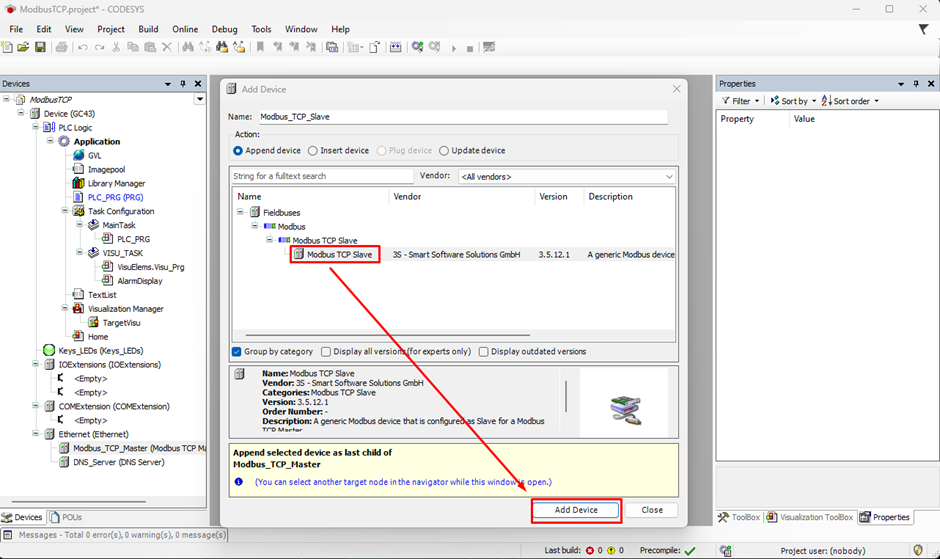

1.3 Add Modbus Slave device under Master device

      Select Master device and right click. Add Slave device under Master configuraton



1.4  Master device parameters

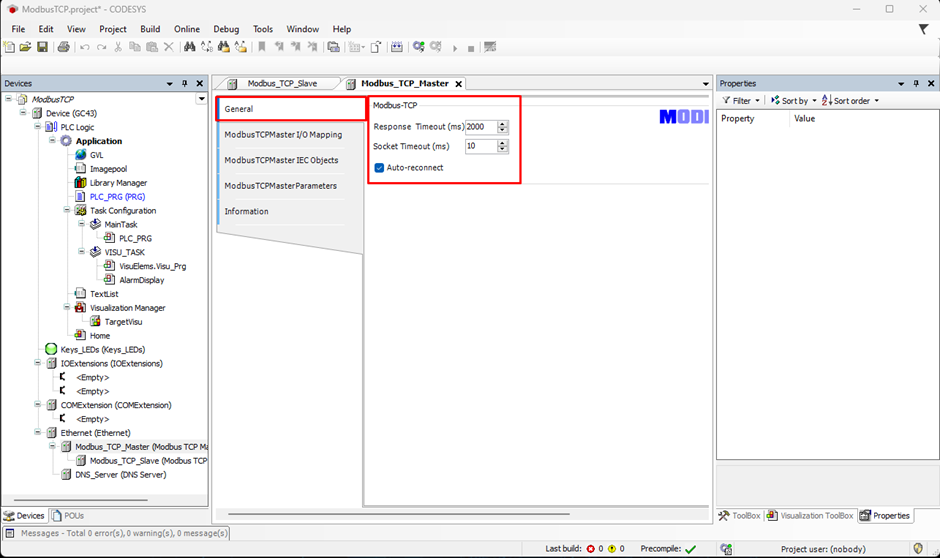

      1.4.1 General settings

            Leave everything default, only modify if you not statisfied these settings.

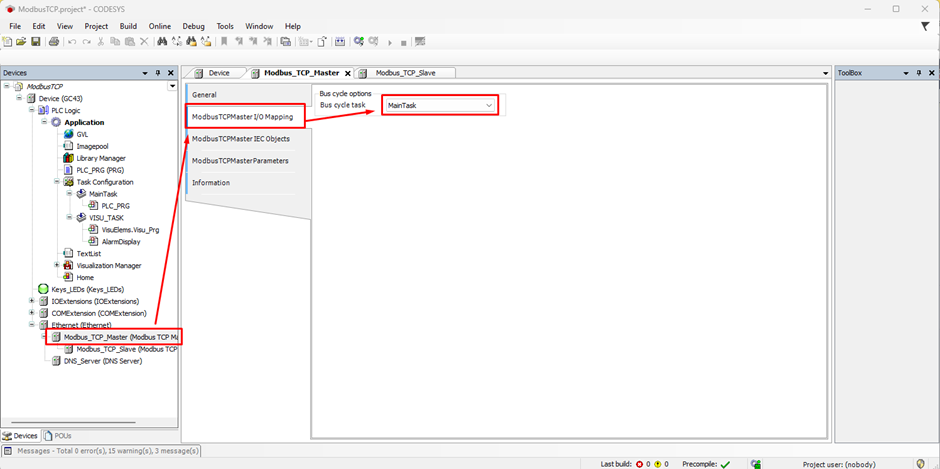

      1.4.2 Modbus TCP Master I/O Mapping

            For Modbus Bus cycle options choose Main task.


1.5  Slave device parameters

      1.5.1 General

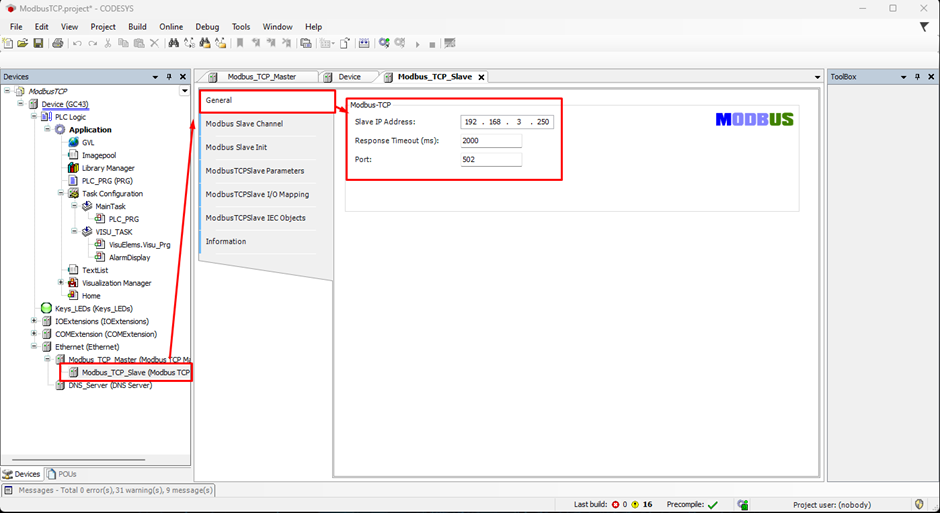

            Set IP address of the slave device and port number (def :502)

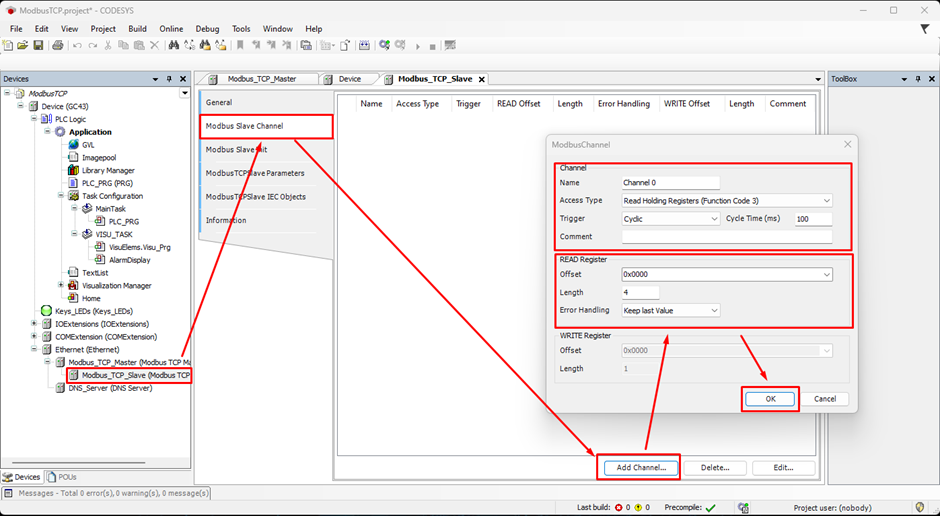

      1.5.2 Modbus Slave Channel

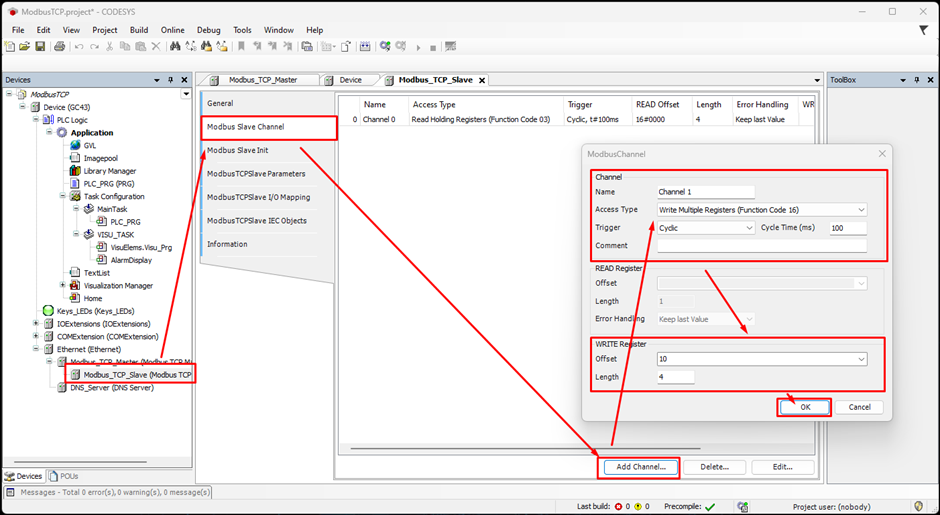

            Set 1 channel for read (4 Holding register) and 1 channel for write (4 Holding register)

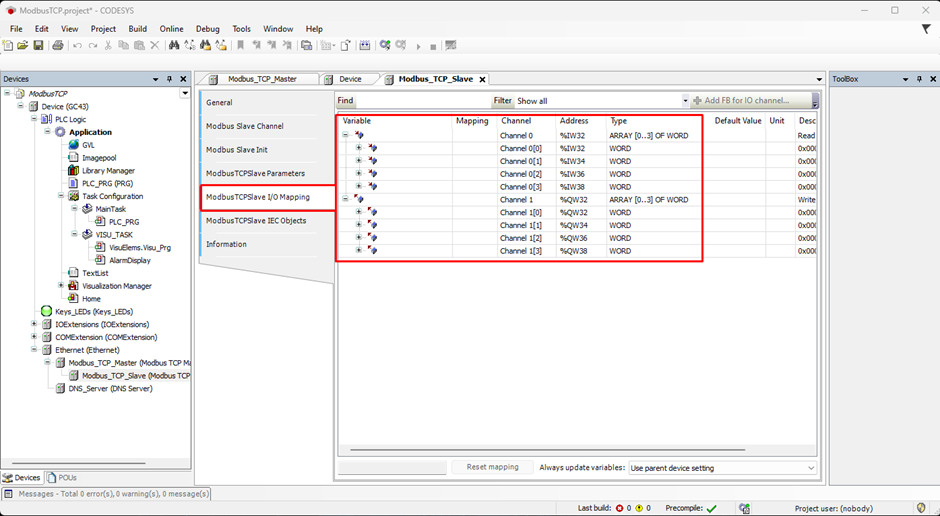

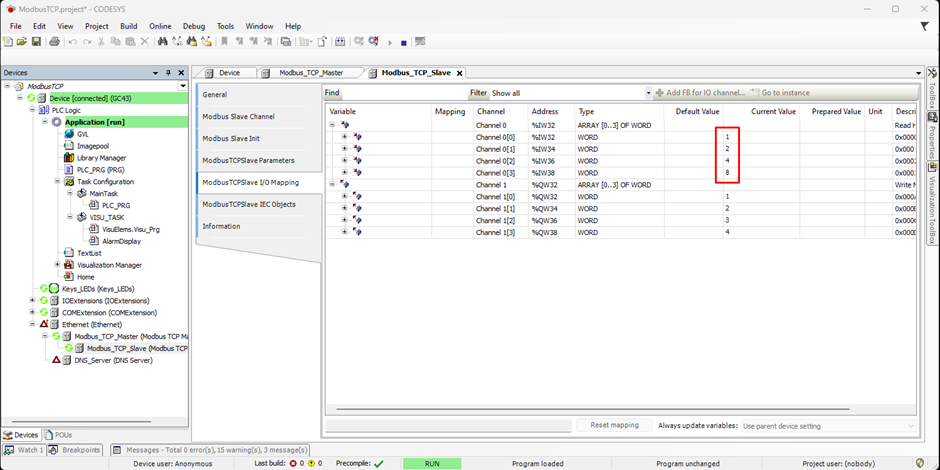

            In the IO mapping windows you can check your final setup.


1. 6 Login and download project

      1.6.1 Establish connection with GOC43

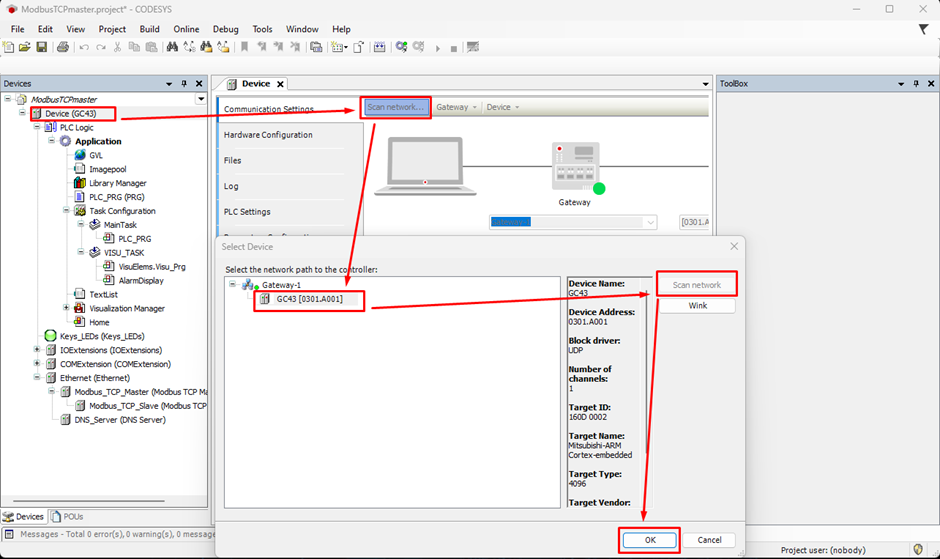

      Select device, then scan your network searching for PLC.

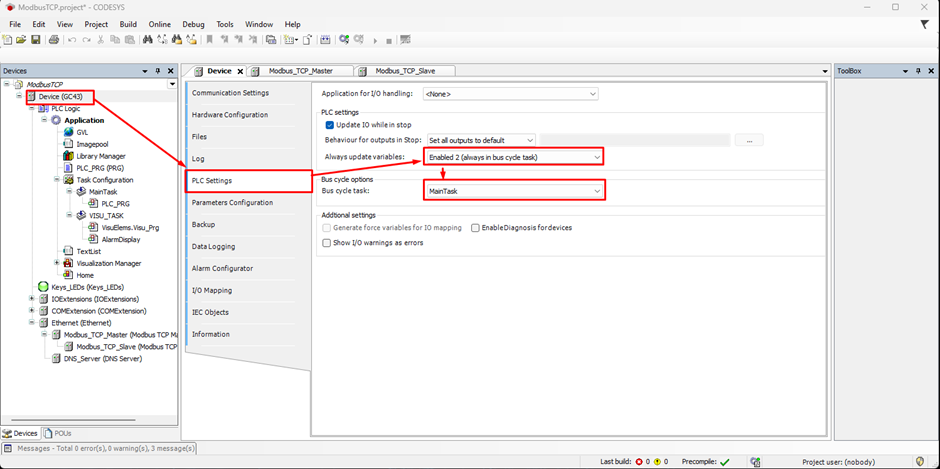

      1.6.2 Setup your PLC parameters

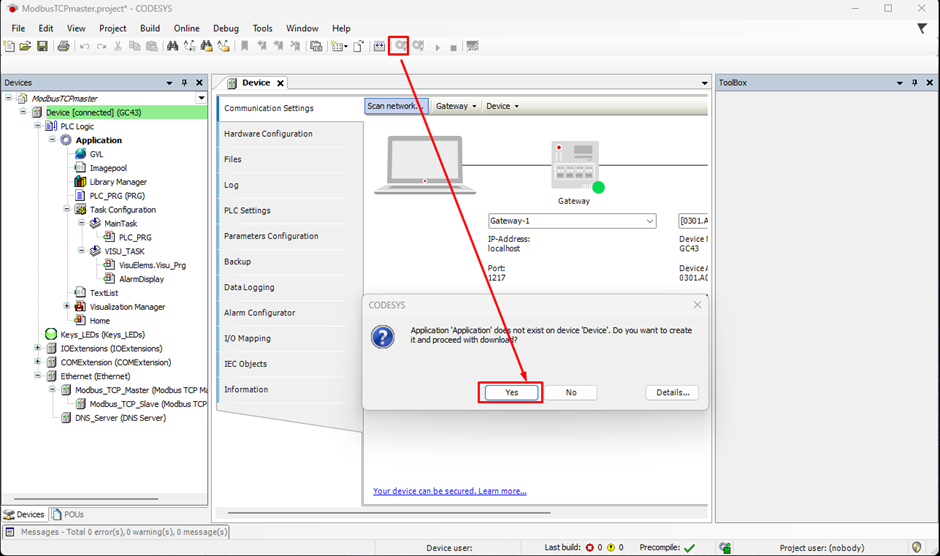

      1.6.3 Login and download project

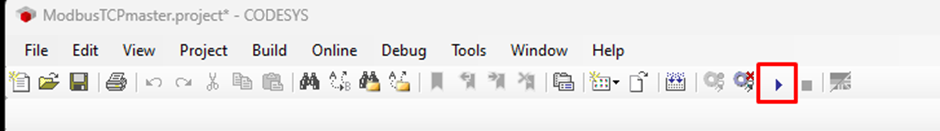

      1.6.4 Start PLC

      Click on the "play" icon

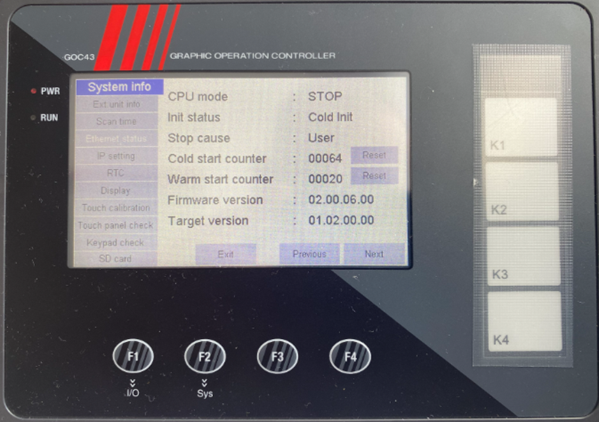

      During download you will see the GOC system menu. After that screen will be white, because we did not add any visualization element to the project.


2. Setup FX5U Modbus TCP Slave

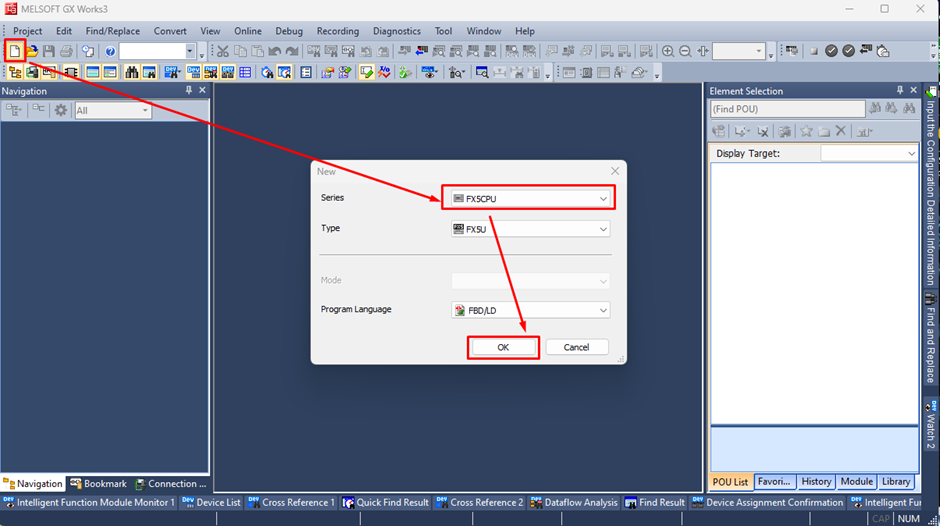

      2.1 Create a new project



      2.2 Setup Ethernet

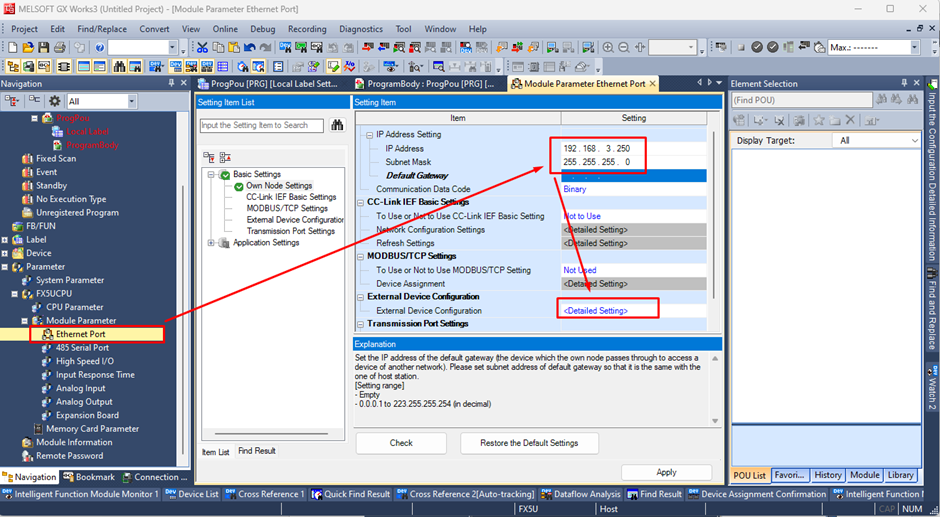

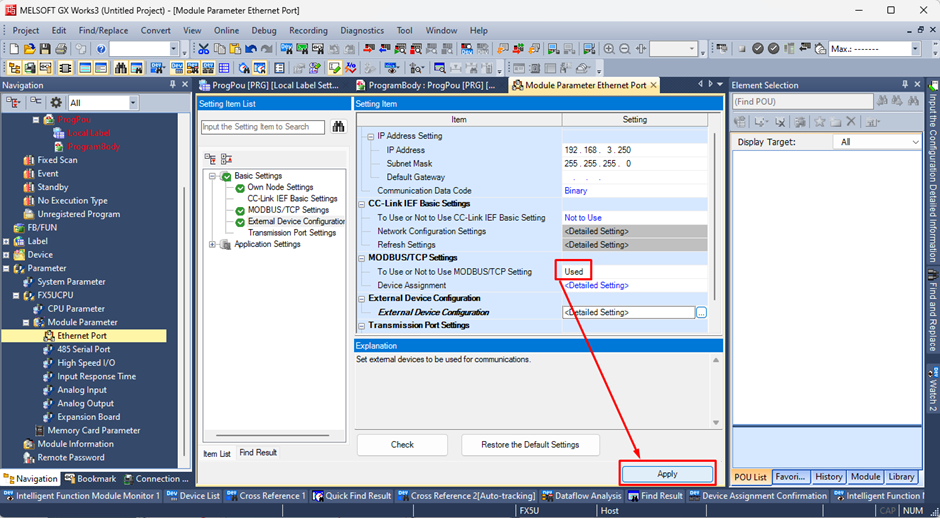

            2.2.1 Set IP address of the PLC and subnetmask

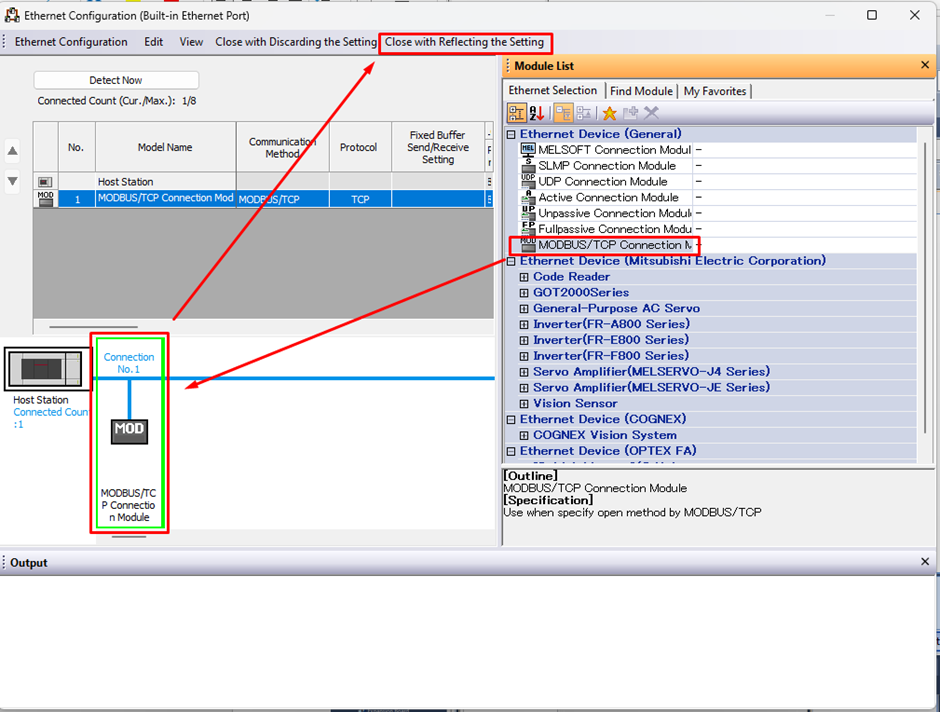

            2.2.2 Add modbus connection to the ethernet configuaration window


                  Finish setup with pressing the Apply button

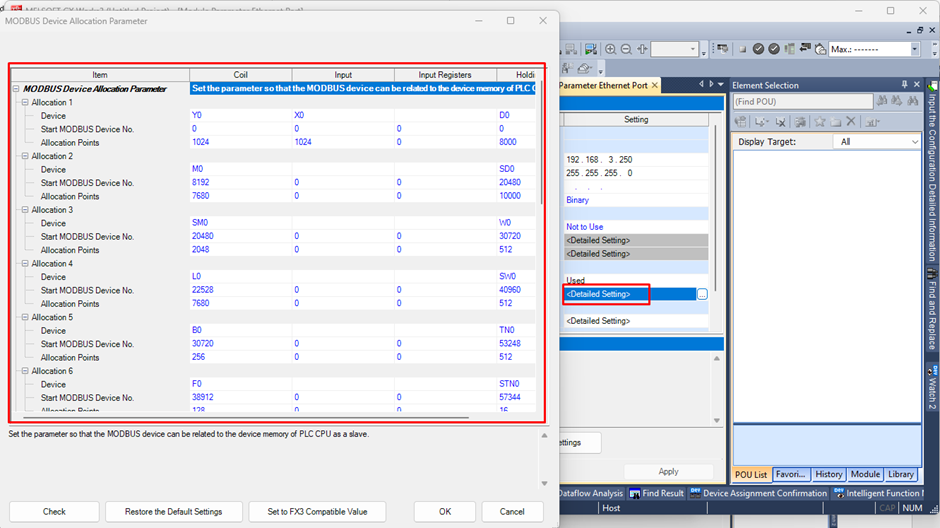

            2.2.3 checiking Modbus register allocation

                  Leave default

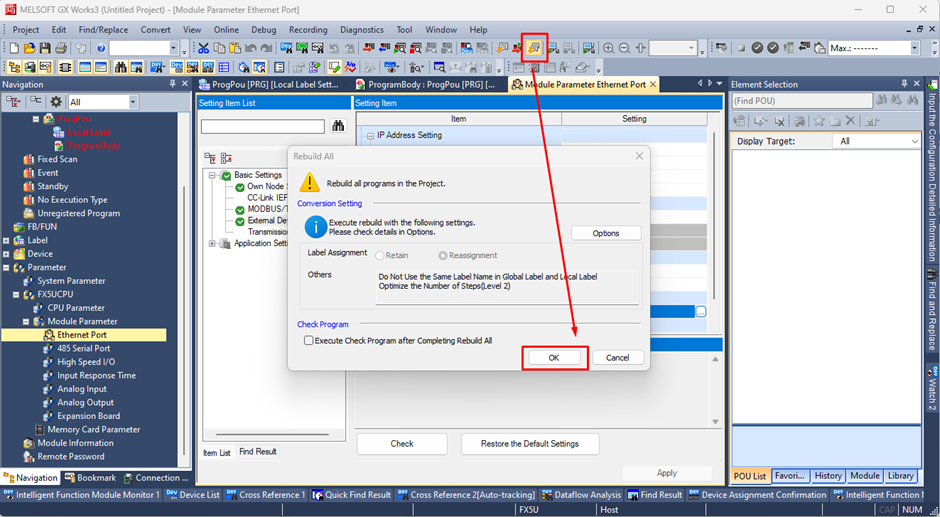

     2.3 Compile and download

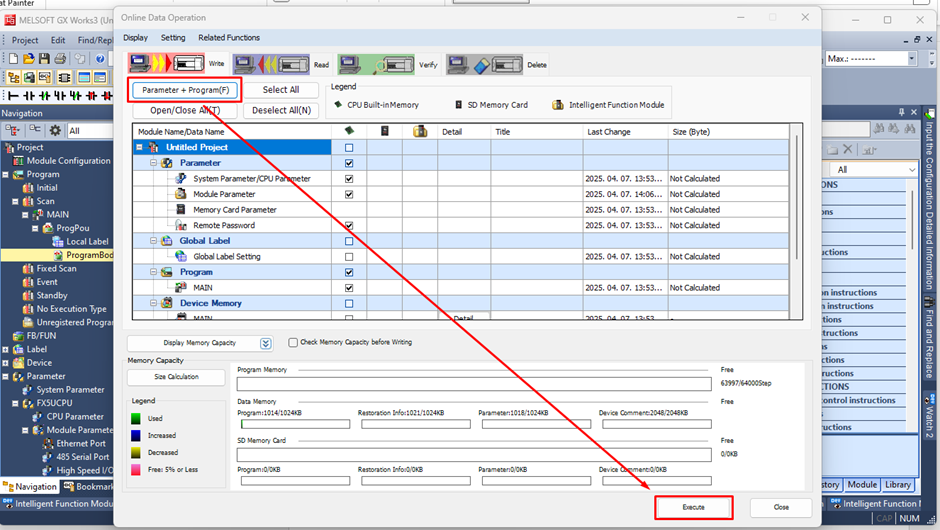

                  Select parameter + program

                  Accept all pop up window, and follow reset instruction. (Reset method: Run-stop-reset switch hold down till error LED lit on the PLC  2-3 times then switch to RUN state)

3. Test

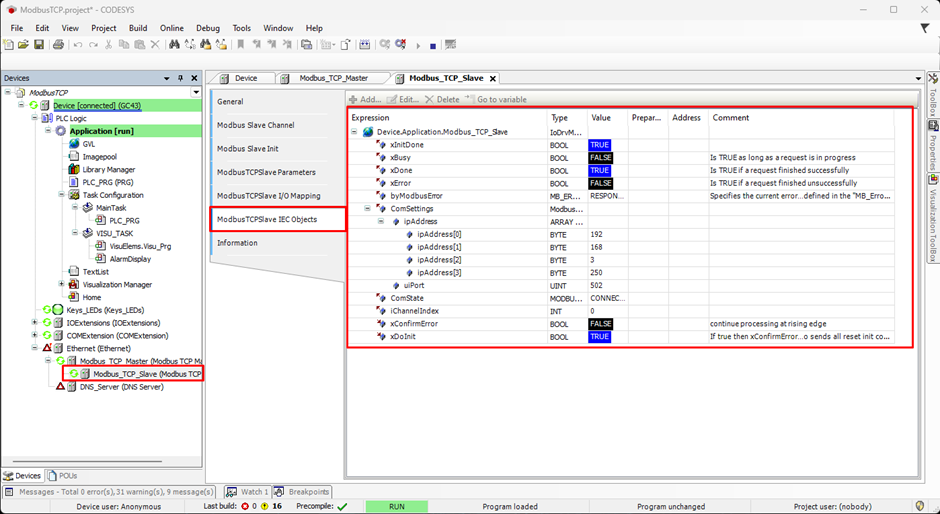

      3.1 Use IEC Objects for communication monitoring

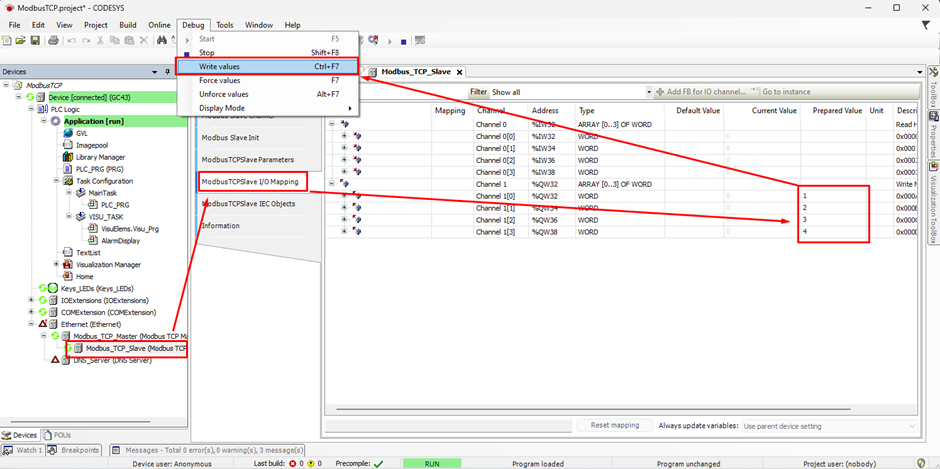

      3.1 Write Values to FX5 PLC

            Prepare some value directly to cyclic exchange registers

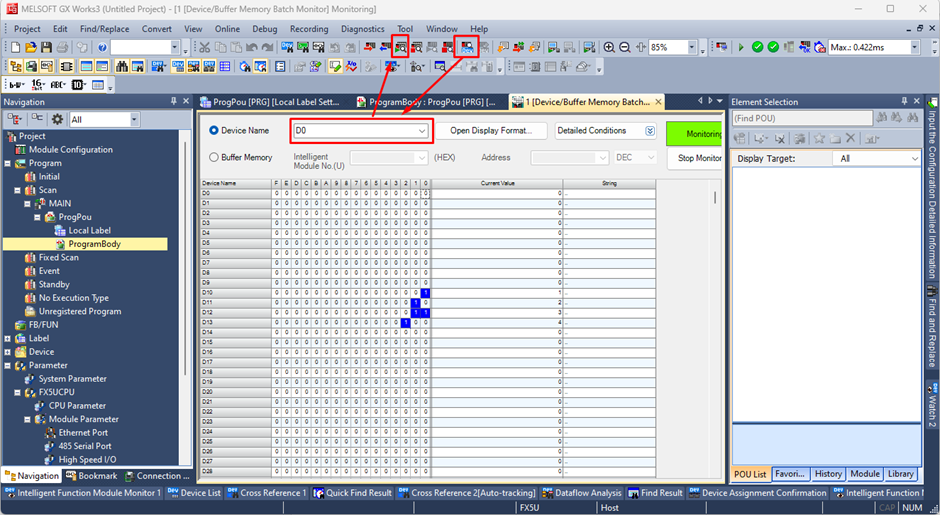

            Check them in GX Works 3 buffer memory windows.

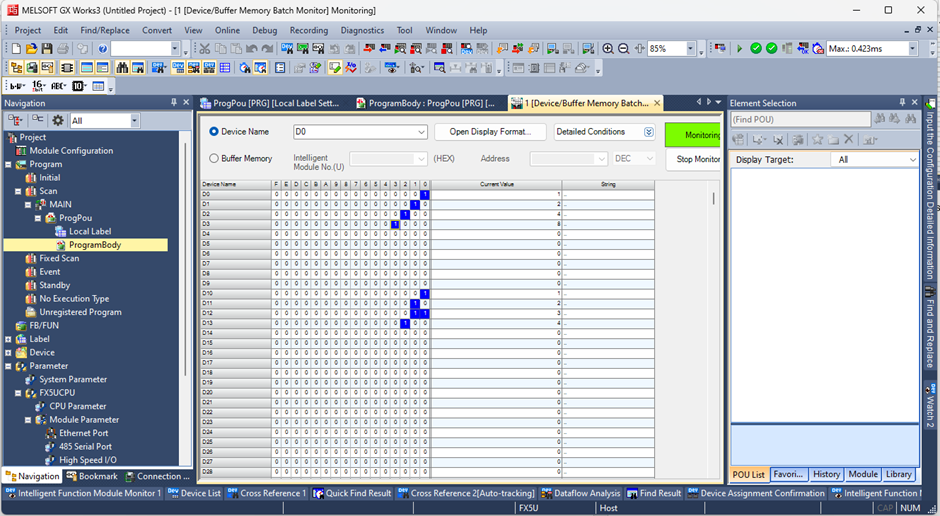

    3.2 Read Values from FX5U
