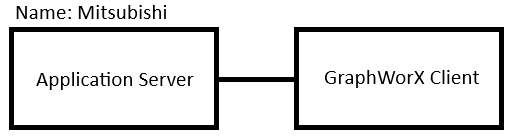

This article will explain how to install GraphWorX64 Client on external PC (other than Iconics server with application)




Start Iconics installation from Iconics Suite installation .iso by clicking RunMe

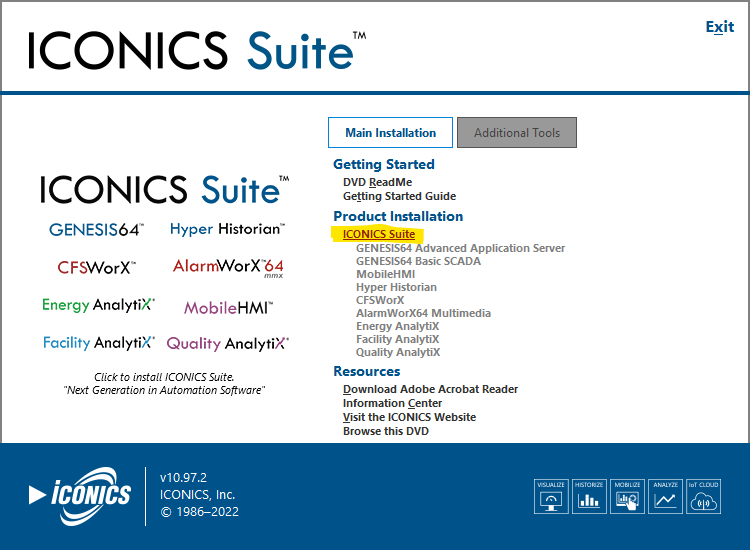

Select ICONICS Suite

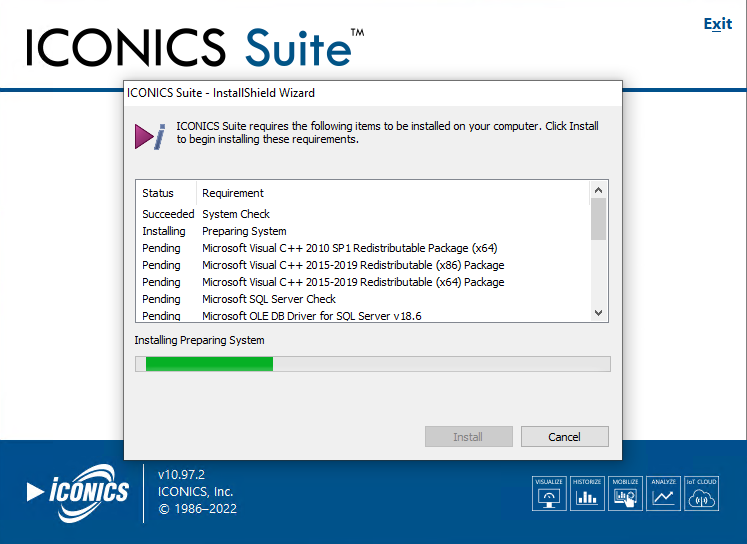

Wait till all necessary third party modules are insatlled

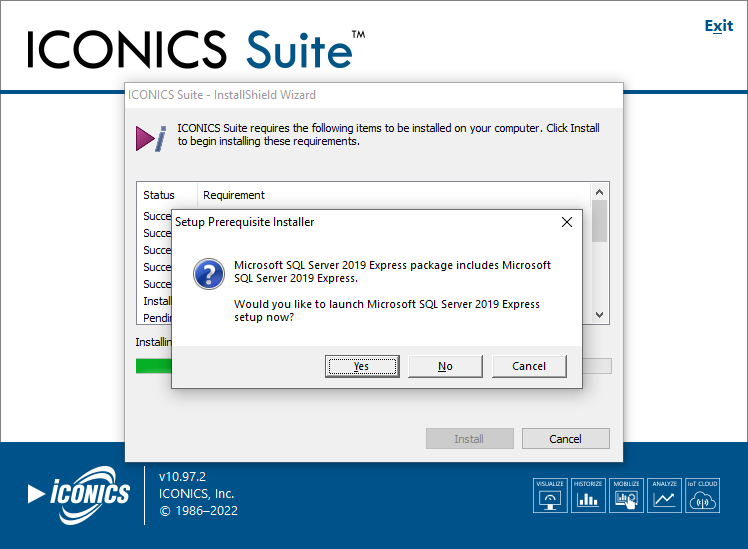

Refuse SQL Server Installation by pressing No

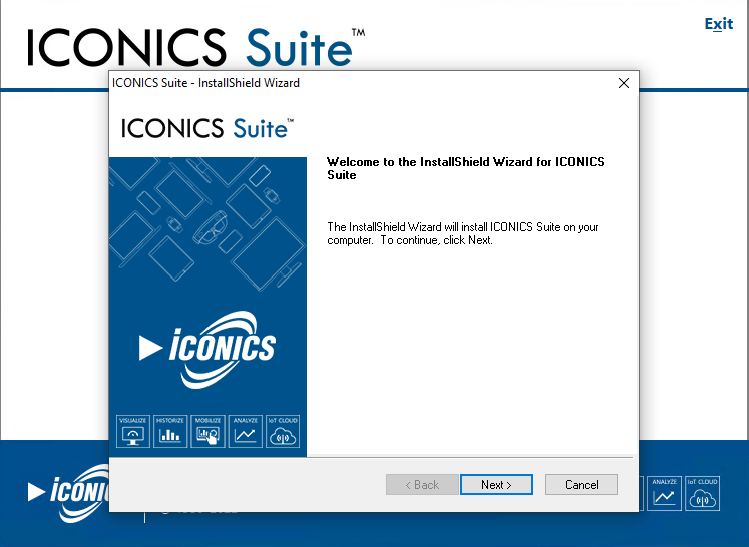

Continue the Iconics installation

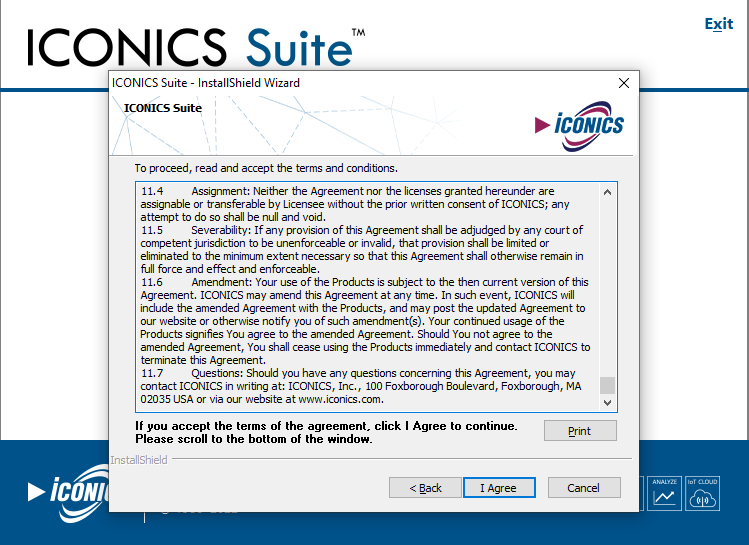

Accept the license

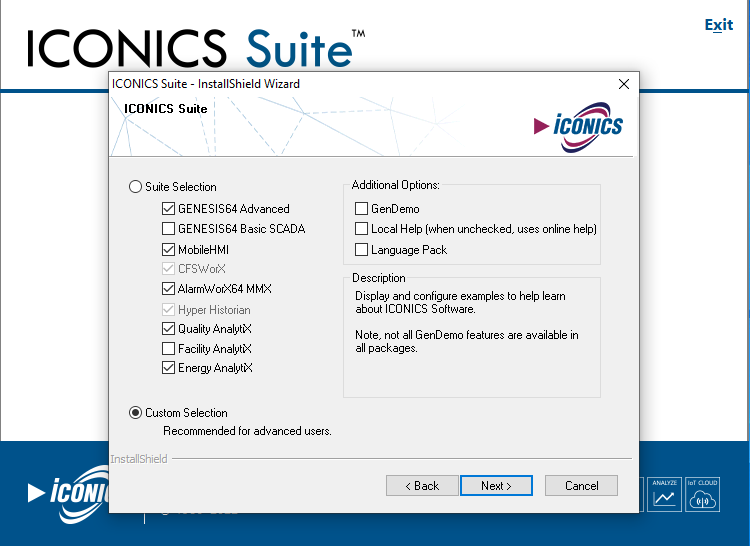

Select Custom Selection

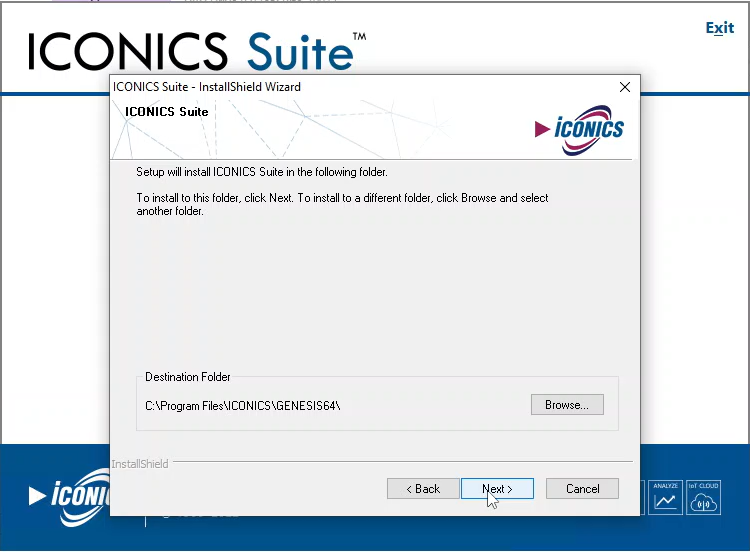

Choose installation folder


Select only the GraphWorX client necessary modules


Enter Iconics application server location  (maction)


Start installation

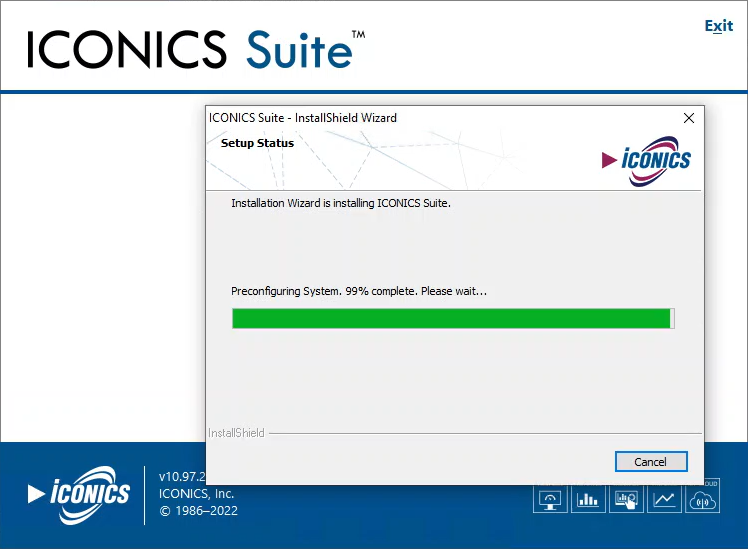

Wait till installation ends


Restart PC

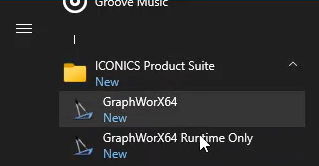

After PC restarts you will be able to start GraphWorX (from Start Menu) which will connect to the server that you pointed by name.
