Iconics Suite - Logging every minute with shift in seconds [Hyper Historian]

This article will show you how to log hyper historian tag every minute with shift in seconds

Open asset property options.

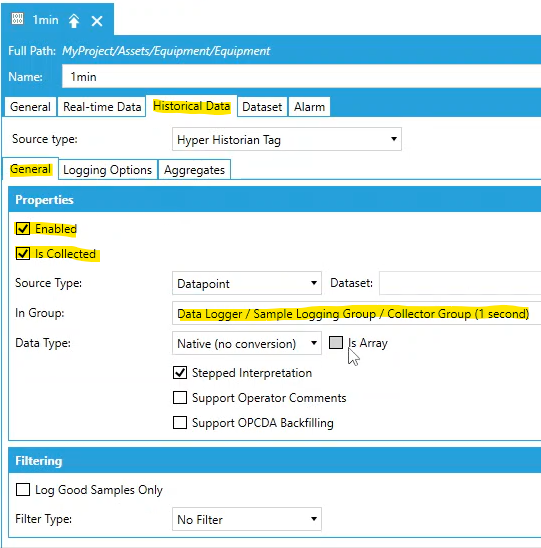

Configure general tag logging options.

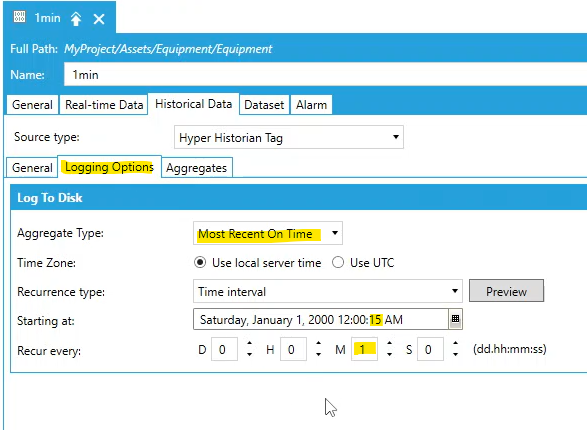

Switch to Logging Options.

Change Aggregate Type to Most Recent On Time.

Set Recur every to 1min, so the logging will be every 1 minute.

Add 15 seconds to Starting time to get 15 sec shift for every logging.

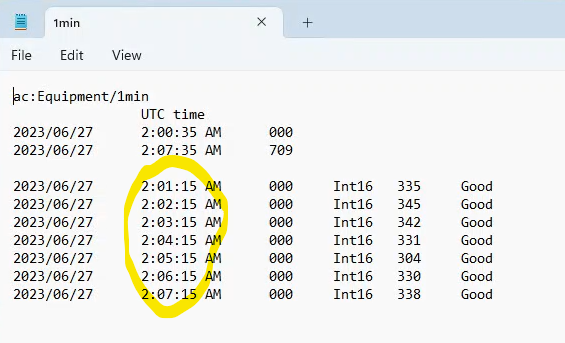

Result of logging
