INV - FR-A800/FR-F800 - Parameter copy by control panel FR-PU07

INV - FR-A800/FR-F800 - Parameter copy by control panel FR-PU07

This manual show how to use panel FR-PU07 to perform read and write inverter parameters.

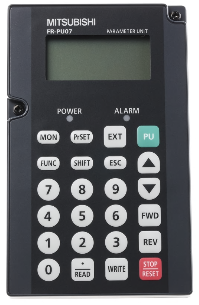

Below on the picture we can see panel  FR-PU07.


We can connect it directly to the inverter or use optional FR-A5 CBL cable. Possibility depends on the inverter type.

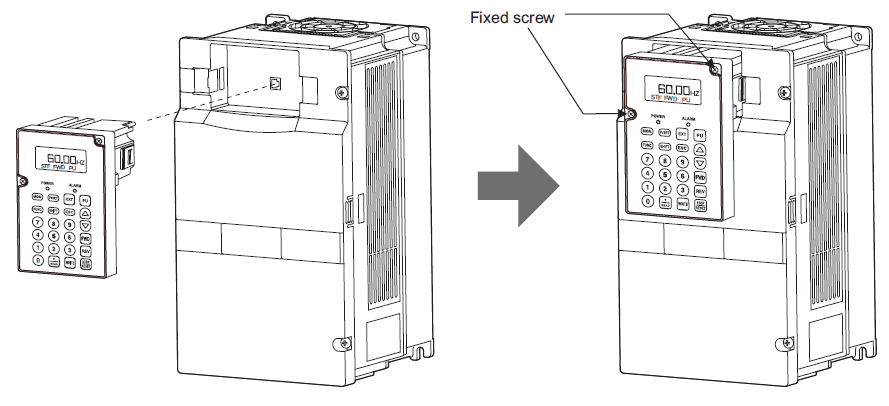

Direct connection:

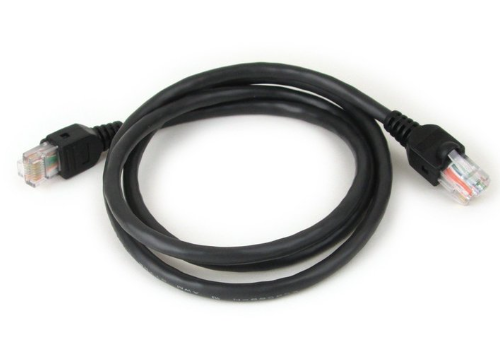

 Connection cable is avaliable in different length (order number is related to the cable length)

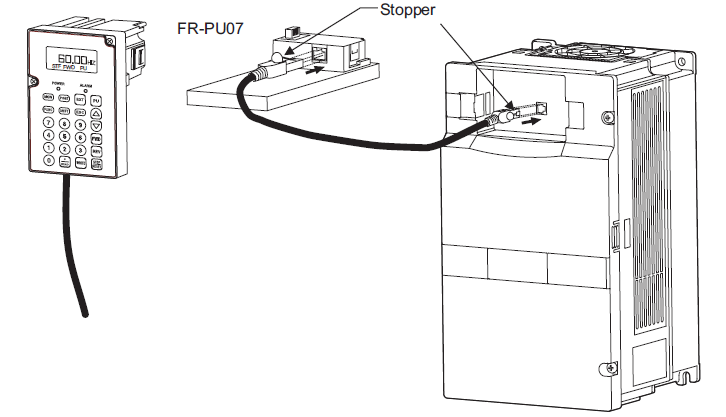

Cable connection:

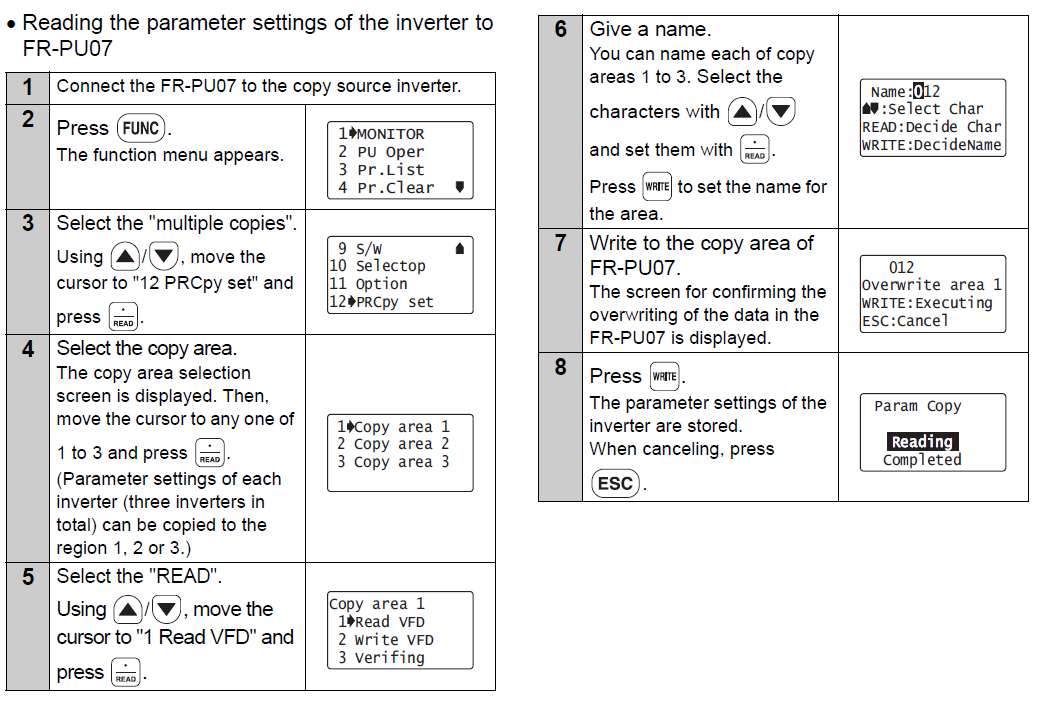

Picture below describes how user can read parameters from any compatible inverter via FR-PU07.

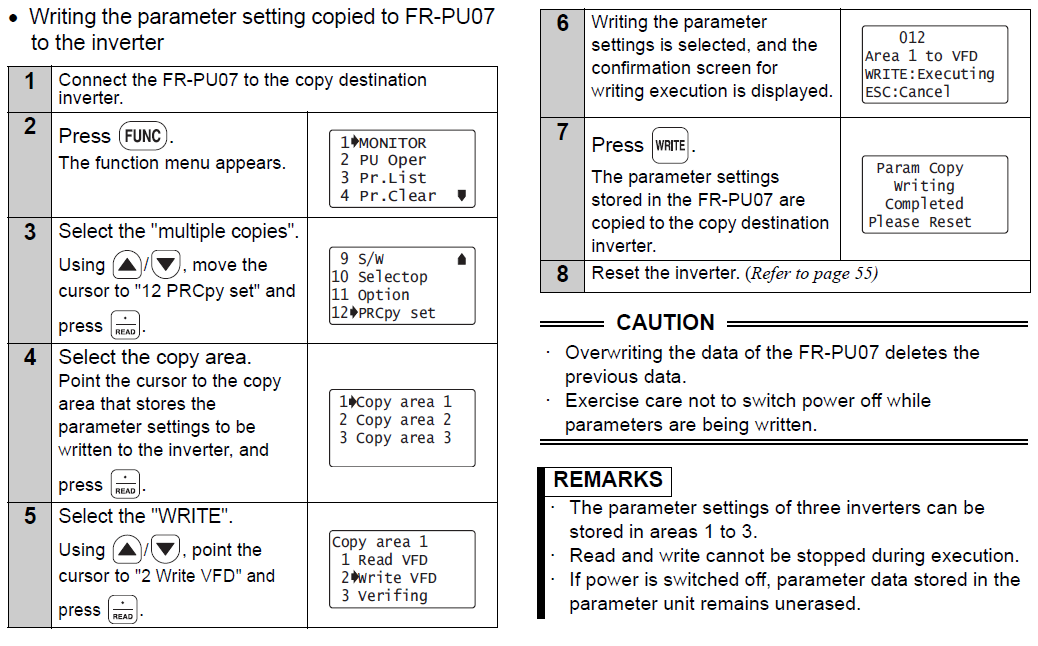

And this one shows how to write it to the target inverter
