Logging and extract data to CSV

MAPS - Logging and extract data to CSV

This manual shows how to logging data during the process and extract this logs to CSV after finishing process. Every process is saved to other CSV file.
"Copyright © Mitsubishi Electric Europe B.V.

IMPORTANT !

These Function Blocks are demo versions that are only  intended to demonstrate program functions and provide general orientation for  your software choices. They are not suitable for use in real applications! "

"Improper use of demo versions in applications can lead to serious malfunctions  and damage! Programs for real applications must always be configured for the  individual application by trained staff and tested thoroughly before being  used.

Mitsubishi Electric cannot assume any liability if these examples are used in real applications."

Creating and logging Analog Agent

Firstly create Analog Agent and set logging


In logging settings choose logging mode and set data configuration.
In this example data is logging to:

C:\ProgramData\Adroit Technologies\Adroit\Configurations\TEST\Datalogs\Analog

Where “Analog” is name of .lgd file with data.

If after process data into file must be cleared, select option “Clear at start”.

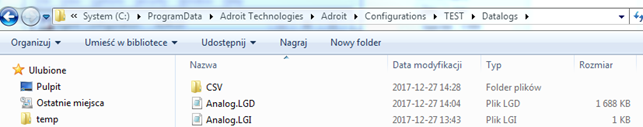

After start logging You should have files into folder as below:

But folder “CSV” is created manually.

Creating BATCH file

Before creating batch file paste small console application “extract.exe” into folder with logging data:
C:\ProgramData\Adroit Technologies\Adroit\Configurations\TEST\Datalogs\


For more details about this application look into Adroit Help in Open Configurator


Next step is create BATCH file which extract logged data into .LGD to new CSV file with timestamp when file was created.

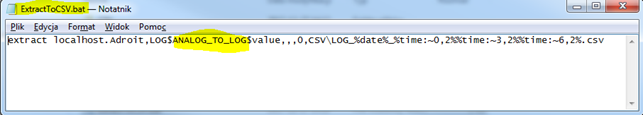

Open notepad and write:
extract localhost.Adroit,LOG$ANALOG_TO_LOG$value,,,0,CSV\LOG_%date%_%time:~0,2%%time:~3,2%%time:~6,2%.csv


Save as ExtractToCSV.bat into the same folder.
Where ANALOG_TO_LOG is name of Agent with logging data.  As You see in Open Configurator in DataLog Agents:


In this moment You can try Your batch file. Just double-click on him. You should get CSV file with data in “CSV” folder

It was created manually. Next step is create script which will do the same automatically.

Creating and setting Agent Script to start batch file

Write name of Agent Script and Add Agent

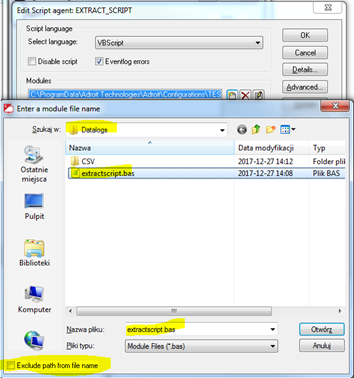

Choose language as VBScript and create module into the same folder

IMPORTANT: Uncheck “Exclude path from file name”!

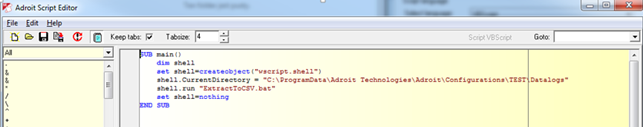

Write script text
SUB main()
dim shell
set shell=createobject("wscript.shell")
shell.CurrentDirectory="C:\ProgramData\Adroit Technologies\Adroit\Configurations\TEST\Datalogs"
shell.run "ExtractToCSV.bat"
set shell=nothing
END SUB


Select a subroutine as main

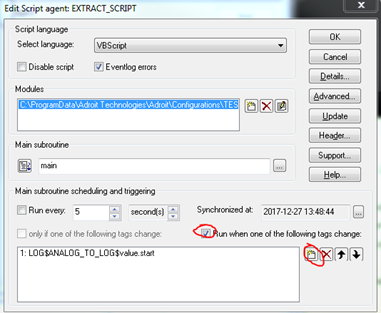

And choose when script should be started (create CSV)


Attachments:

File name:

Description:





extract.exe

Application extract

extractscript.bas

ExtractToCSV.bat

File with script to run batch file

Batch file to run extract
