ME96 and MAPS connected by Modbus TCP_IP

ME96 and MAPS connected by Modbus TCP_IP

This document shows how to connect electronic multi-measuring instrument ME96-MB to MAPS SCADA via Modbus TCP/IP

Configuring Local Network Parameters

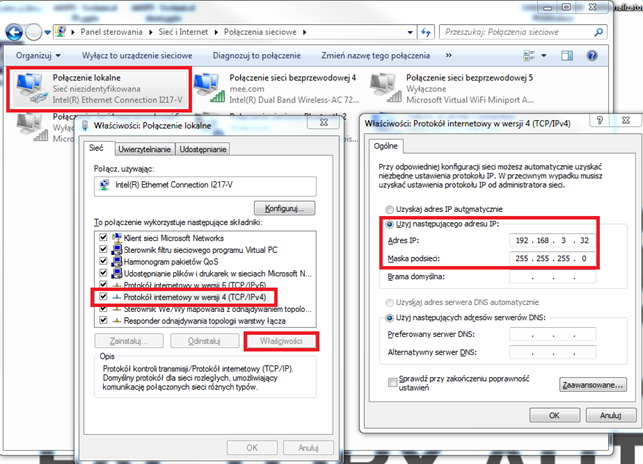

Set static address IP on local network



MAPS Config Editor

Install new driver

First install new driver in MAPS Config Editor.

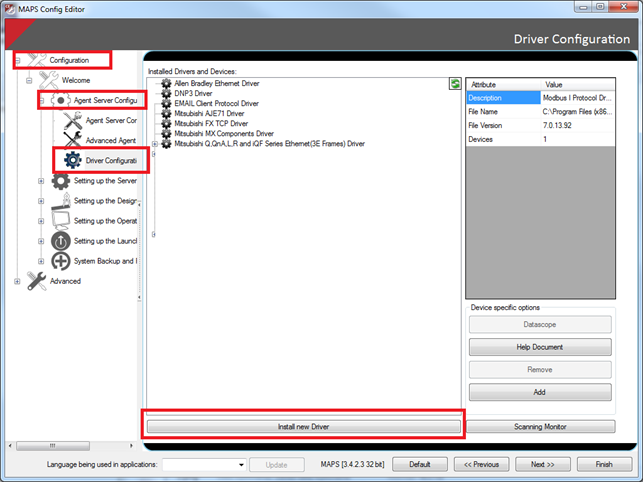

Run MAPS Config Editor -> Configuration-> Agent Server ->Driver Configuration

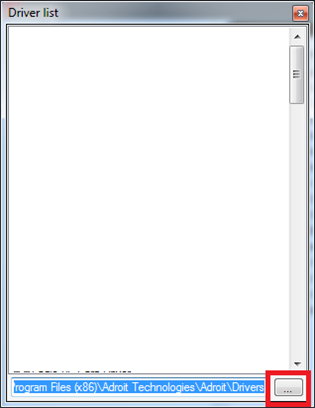

If new open window is empty, choose path to folder with drivers by clicking button […]

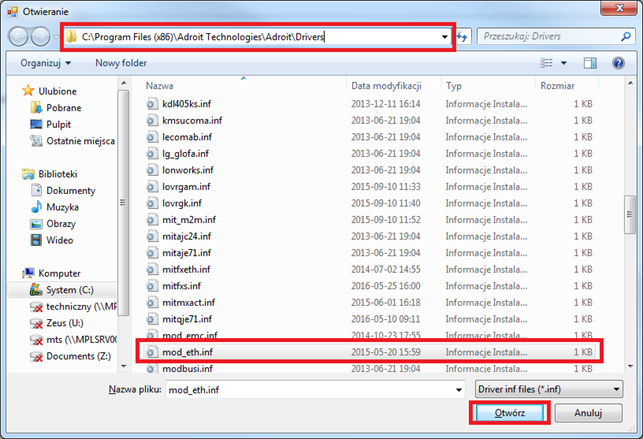

Default path to folder with drivers is folder where MAPS is instelled:
C:\Program Files(x86)\Adroit Technologies\Adroit\Drivers

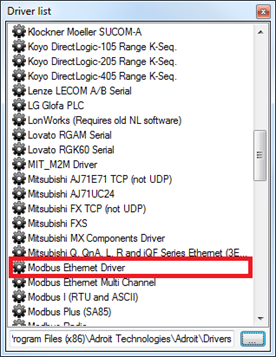

After that choose Modbus Ethernet Driver


Add new device

After install driver, add new device under this protocol driver.
Right click on Modbus Ethernet Driver and Add device

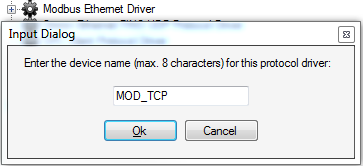

Enter the device name:


Configure new device

After add new device, configure it.

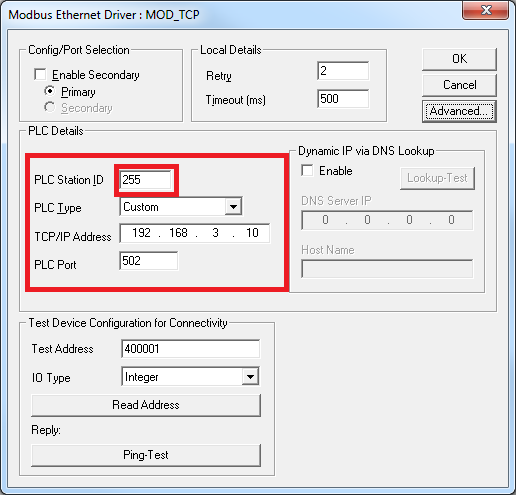

In basic options set the PLC Details as below:

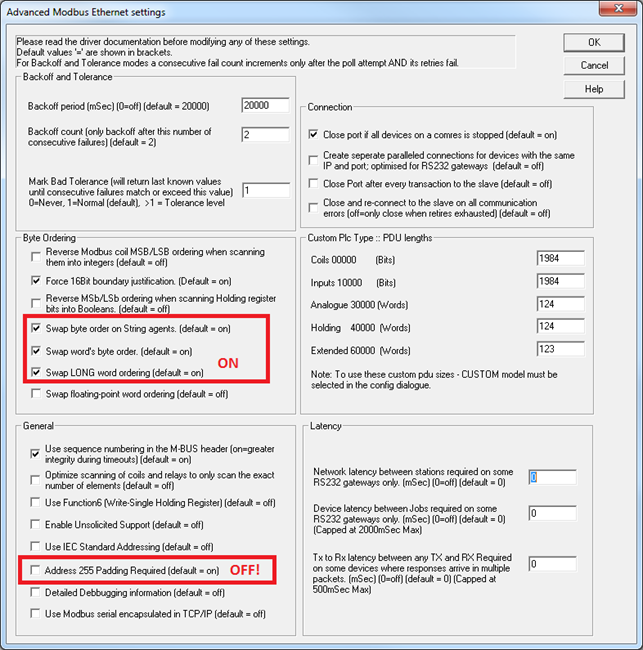

After that click Advanced and set advanced parameters.
Most important parameter is disable “Address 255 Padding Required”. Default this parameter is ON.



MAPS Designer

Add new agent

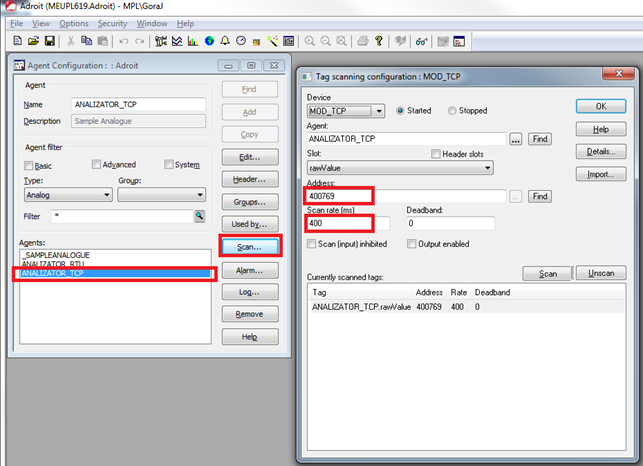

Add new Analog Agent in Open Configurator and Scan it.


Always add 400001 to address!!!

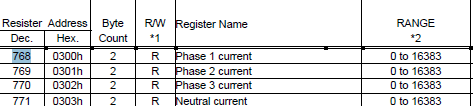

For example when read address 768 in Agent set address as 400769.



Testing

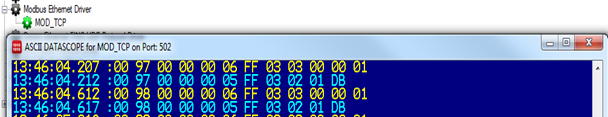

Open DATASCOPE and see sending and reading frame

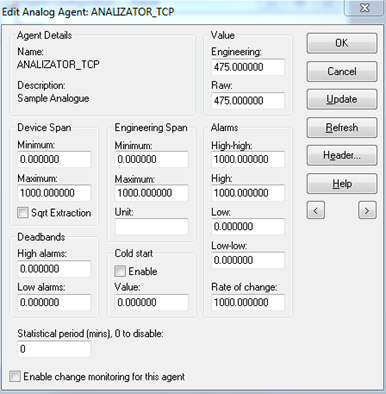

Check value in Analog Agent

1DB in hex = 475 in dec so value is correctly!
