Modbus configuration

Modbus RTU configuration in MR-JE-A and MR-J4-A

This document describes connection and configuration of MR-JE and MR-J4 using MODBUS RTU.

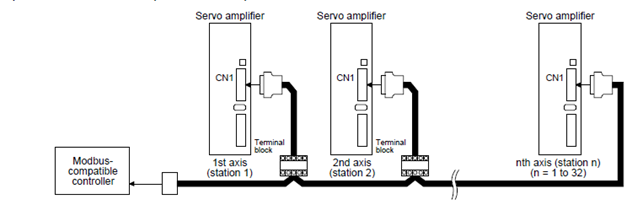

Wiring for MR-JE-_A

Up to 32 axes Of servo amplifiers can be operated and controlled on one bus.

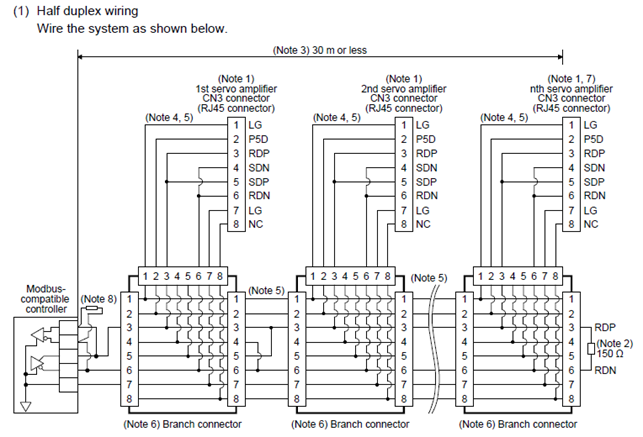

Half duplex wiring

Wire the system as shown below.

Note:
  1. Connector set MR-J3CN1 (3M or equivalent)
    1. Connector: 10150-3000PE
    2. Shell kit: 10350-52F0-008
  2. Connect TRE and RON on the last axis.
  3. The total extension length should be 30 m or shorter in a low-noise environment
  4. When a Modbus-compatible controller does not have a termination resistor, terminate the wire ends with a resistor of 150 Ω

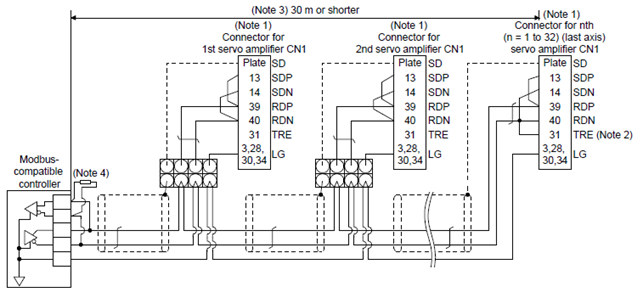

Full duplex wiring

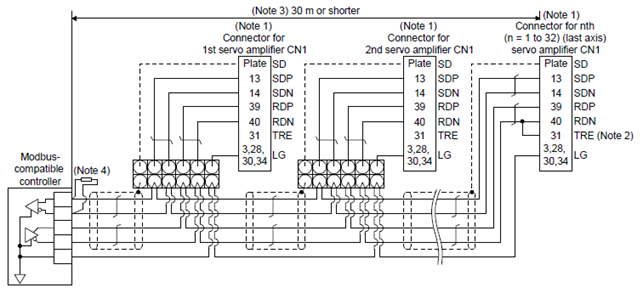

Wire the system as shown below.


Note:
  1. Connector set MR-J3CN1 (3M or equivalent)
    1. Connector: 10150-3000PE
    2. Shell kit: 10350-52F0-008
  2. Connect TRE and RON on the last axis.
  3. The total extension length should be 30 m or shorter in a low-noise environment
  4. When a Modbus-compatible controller does not have a termination resistor, terminate the wire ends with a resistor of 150 Ω

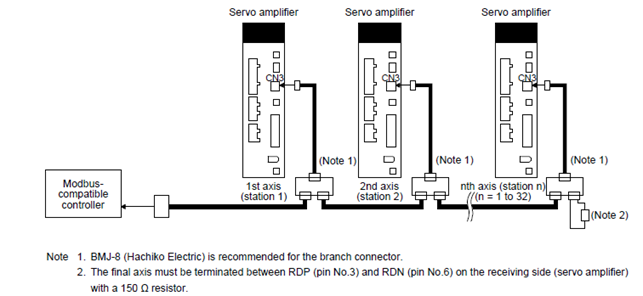

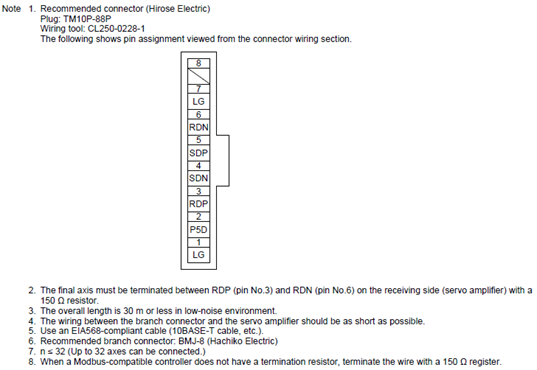

Wiring MR-J4-_A_-RJ

Up to 32 axes Of servo amplifiers can be operated and controlled on one bus.


Half duplex wiring

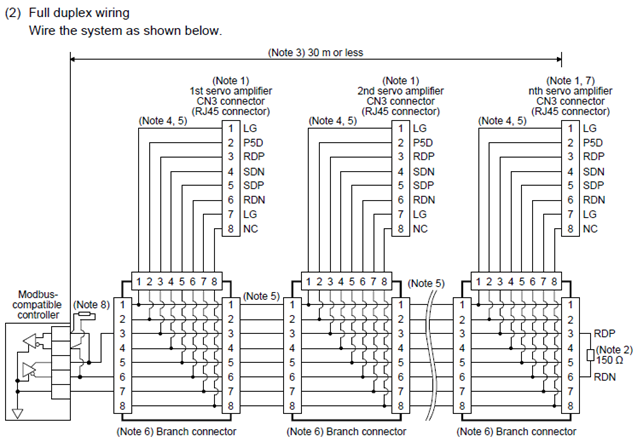

Full duplex wiring




Communication configuration



FOR MR-JE-_A


FOR MR-J4-_A_-RJ


Sample paramter setting

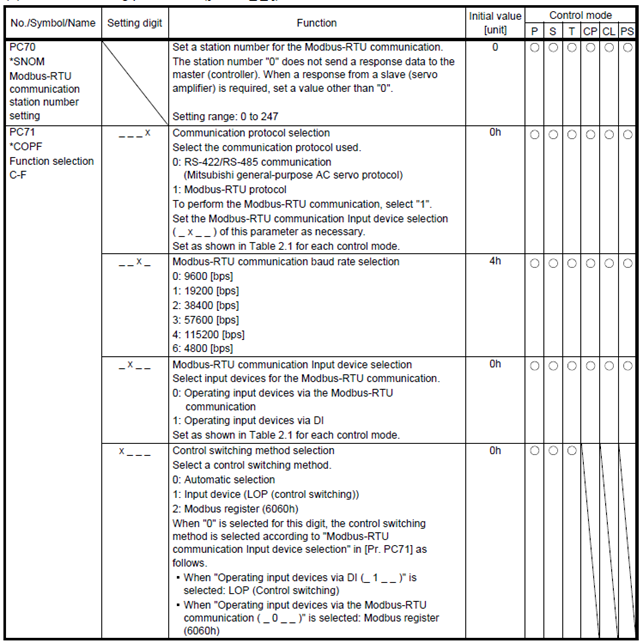

For basic communication you need to set parameters:
  1. PC70 – station number
  2. PC71 –
    1. _ _ _ x – communication protocol selection
    2. _ _ x _ - communication baud rate selection

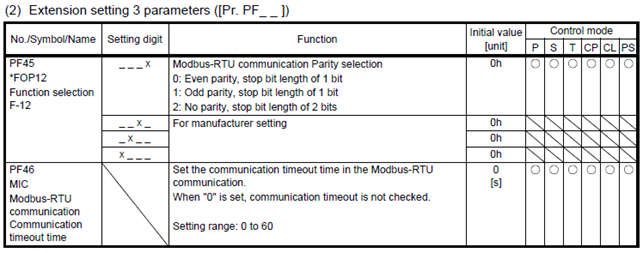

  3. PF45 – _ _ _ x -  communication parity selection

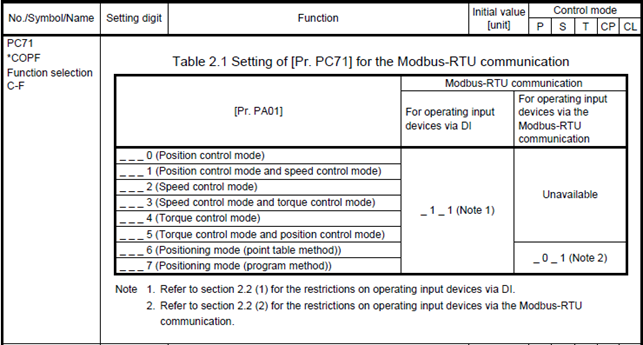

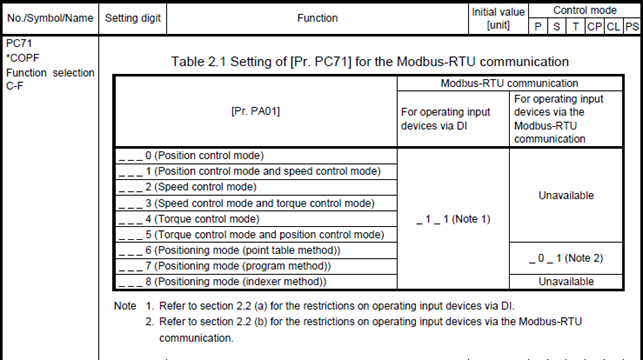

For operating input devices via the MODBUS-RTU communication:
PC71 – _ 0 _ _
PA01 – _ _ _ 6 or _ _ _ 7 - control mode

For operating input devices via DI:
  1. PC71 – _ 1 _ _
  2. PA01 –
    1. from _ _ _ 0 to _ _ _ 7 for MR-JE-_A
    2. from _ _ _ 0 to _ _ _ 8 for MR-J4-_A_- RJ
Related manuals
MR-J4-_A_-RJ SERVO AMPLIFIER INSTRUCTION MANUAL (Modbus-RTU Protocol)
MR-JE-_A(MODBUS_RTU_PROTOCOL)
