Multi keyboard GOT2000

Multi keyboard GOT2000

This project shows how to create a few different keyboards in one project.

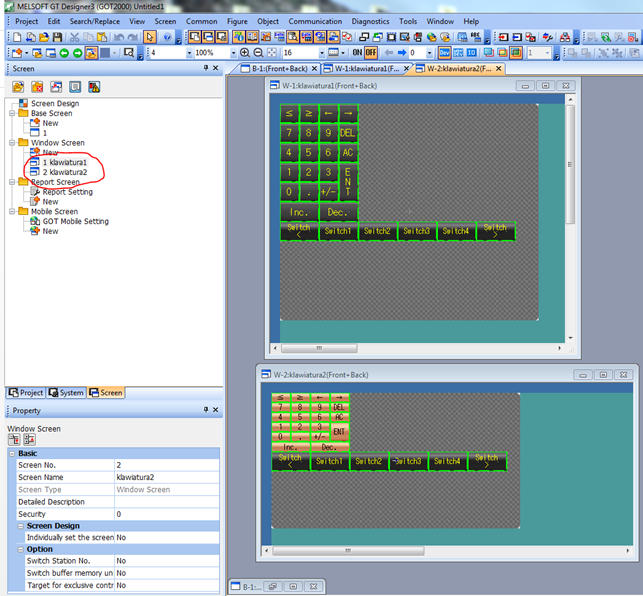

Create user keyboard

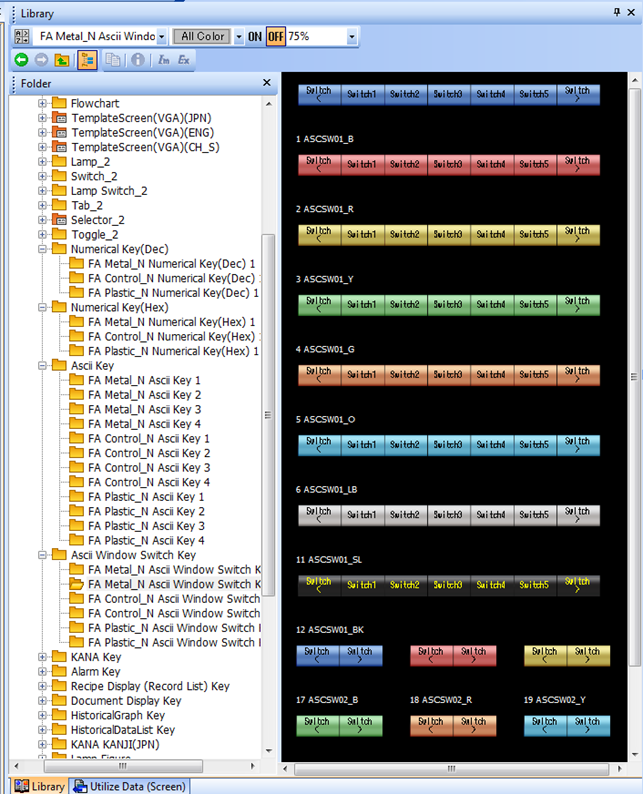

You can use key library:


And you can use key switch for switching windows:




Switch button settings:



Parameter setting

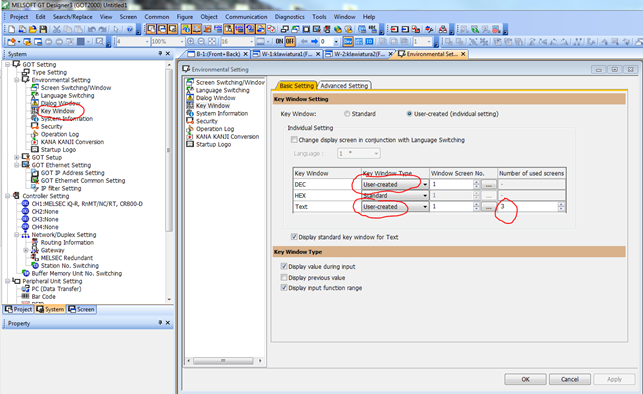

Open Key window setting

Select User-created and set number of keyboards


Limitation

1.    We can only create multi ASCII keyboard.

2.    Every time open first keyboard
