Sample GOT screens for robot control (FR Series, CR800-D), Full Project

Sample GOT screens for robot control (FR Series, CR800-D), Full Project

An official sample GOT2000 project for robot FR Series (CR800-D controller) controlling and monitoring

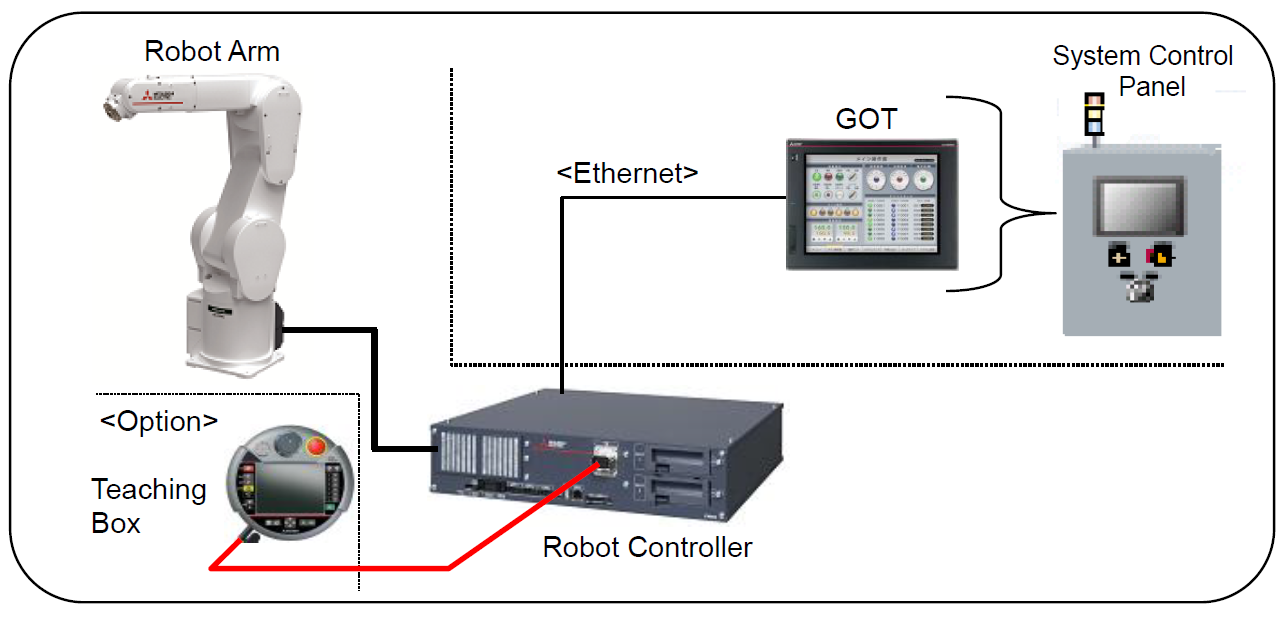

System configuration:


Project contains follwing screens:

Robot operation
Position Edit
JOG control
HAND control
Variable edit
Load level monitor
Current monitor
Position monitor
Production Information
Maintenance forecast
Preventive Maintenance
Predictive Maintenance
Error information
Error History
Manual

Station number definition:

Please be carefull to set unique station numbers in project.


Attachment content:

1) Manual
2) GOT2000 project
