Sharing PLC labels with GOT2000 using label list

Sharing PLC labels with GOT2000 using label list

This document describes how to share global labels of iQ-F project with GOT2000.
Described method base on export and import function of label list to CSV file.

Define global labels in PLC

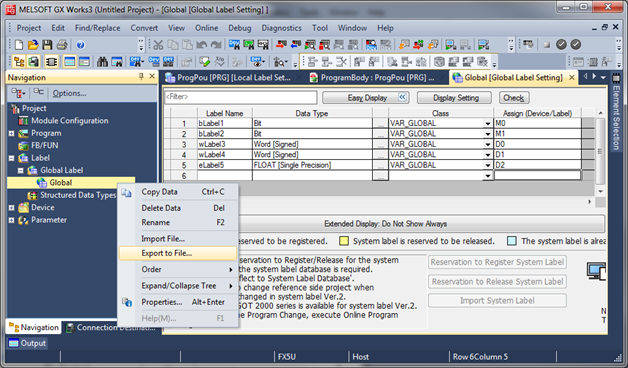

Define global labels on PLC side. Assign device to each label, then export labels to the CSV file.


Import labels to GT Designer3

Add new label group into the GT Designer project

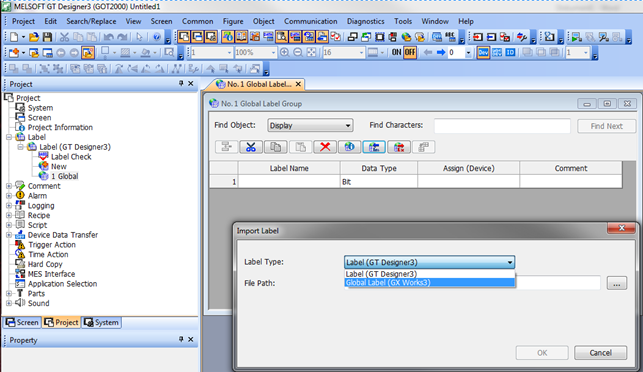

Open created Label Group and select import option. In the Import Label window select Global Label (GX Works3) as Label Type and select file that you generated form GX Works3.

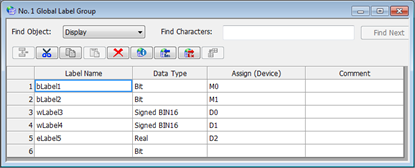

As a result you should see labels in GT Designer.



Using labels in GT Designer

In object settings define device using: Label (GT Designer3)


Select label from the list
