Connection between GOT 2000 and GT Designer3 (PC) over RCPU with RJ71EN

Connection between GOT 2000 and GT Designer3 (PC) over RCPU with RJ71EN

This article describes connection between GOT 2000 and GT Designer3 over RCPU with RJ71EN
Ten artykuł opisuje połączenie pomiędzy panelem GOT 2000 i oprogramowaniem GT Designer3 poprzez sterownik RCPU z modułem RJ71EN

1. PC -> RCPU -> RJ71EN -> GOT

In this case PC will be connected to built-in ethernet port on RCPU and GOT will be connected to RJ71EN.

RCPU: 192.168.3.39 Network No. 2 Station No. 1

RJ71EN: 192.168.3.40 Network No. 1 Station No. 1



Routing: Network No. 2 Station No. 1 -> Network No. 1

1.1 Network configuration

Firstly you need to configure ethernet built-in port and module. You need to set:
  1. Two different IP adresses
  2. Enable communications by Network No./Station No.
  3. Set Network No./Station No.
  4. Add MELSOFT connections

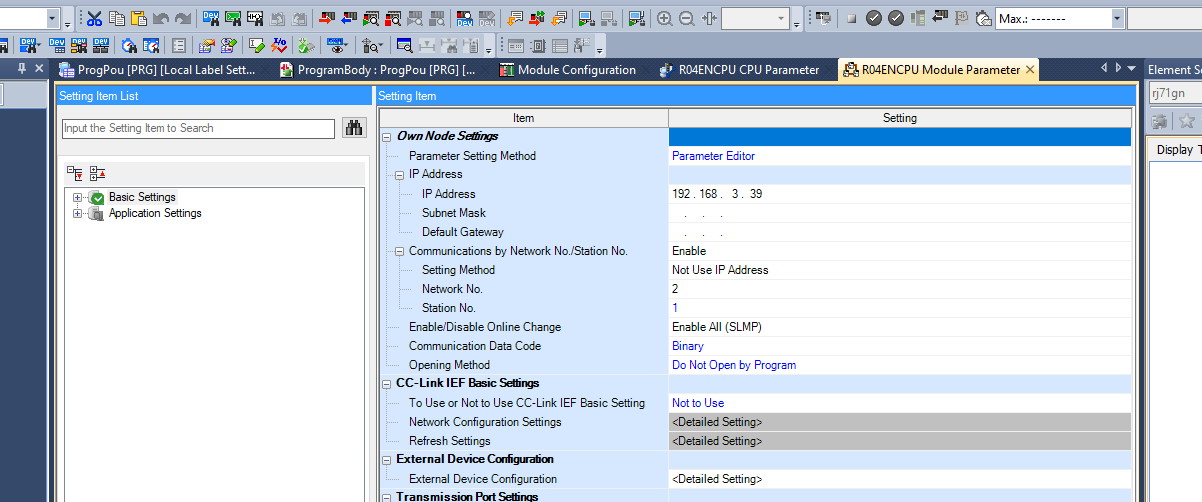

So for built-in port:

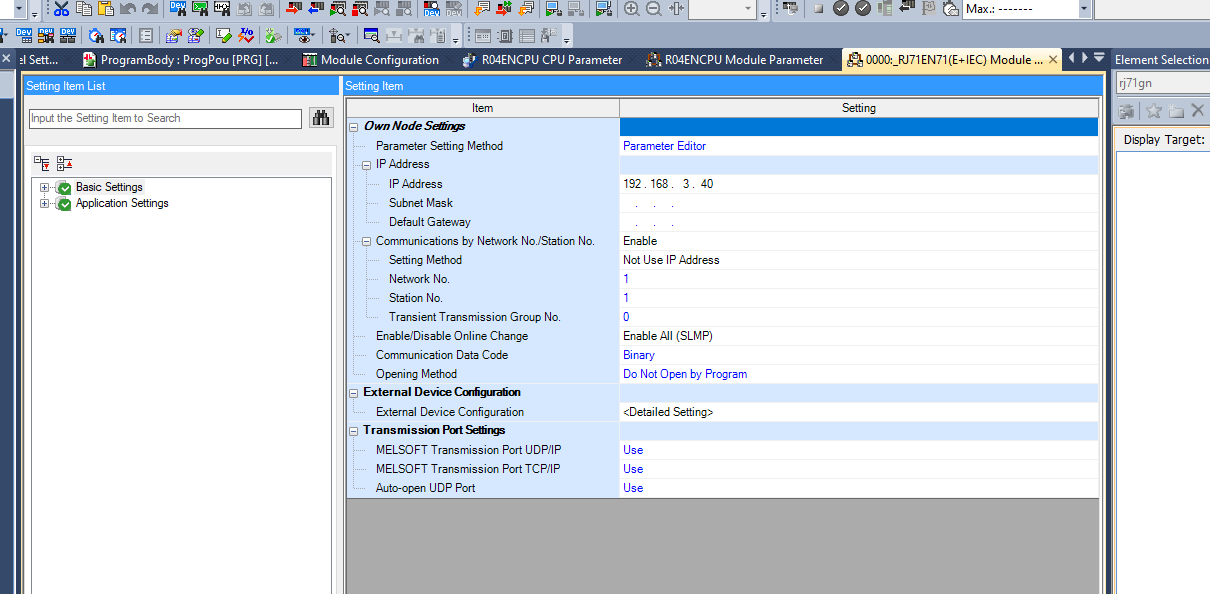

And for ethernet module:


1.2 Routing configuration

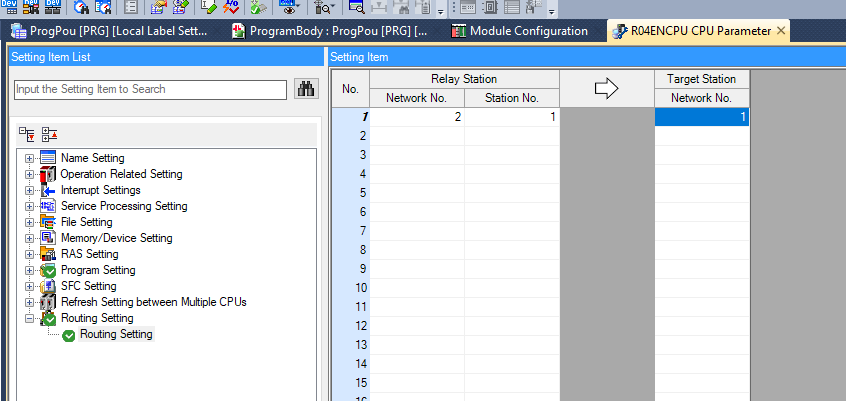

Giving that PC is connected to Network No. 2 we will be routing this network to Network No. 1 (network with GOT):

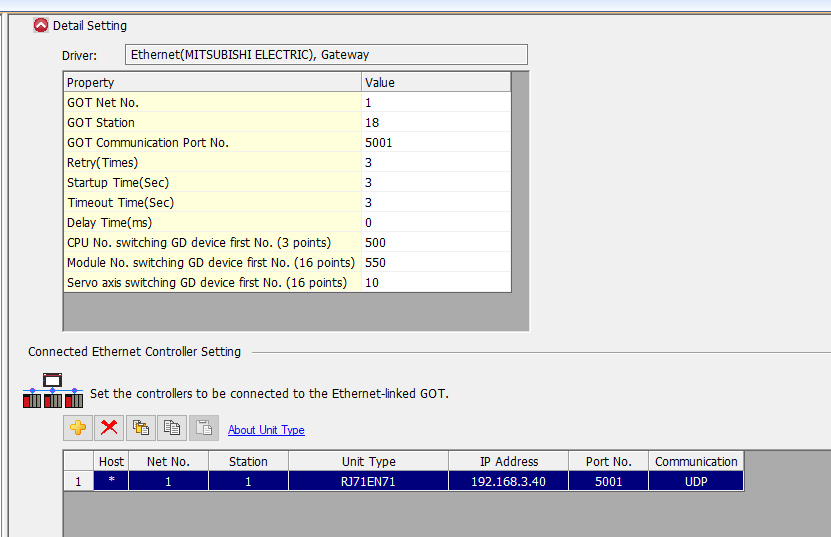

1.3 Driver configuration

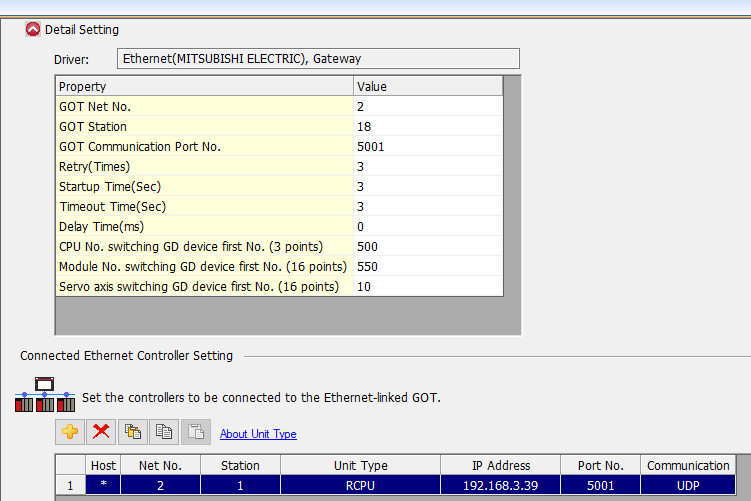

In driver configuration you need to put network number of module that GOT is connected to:

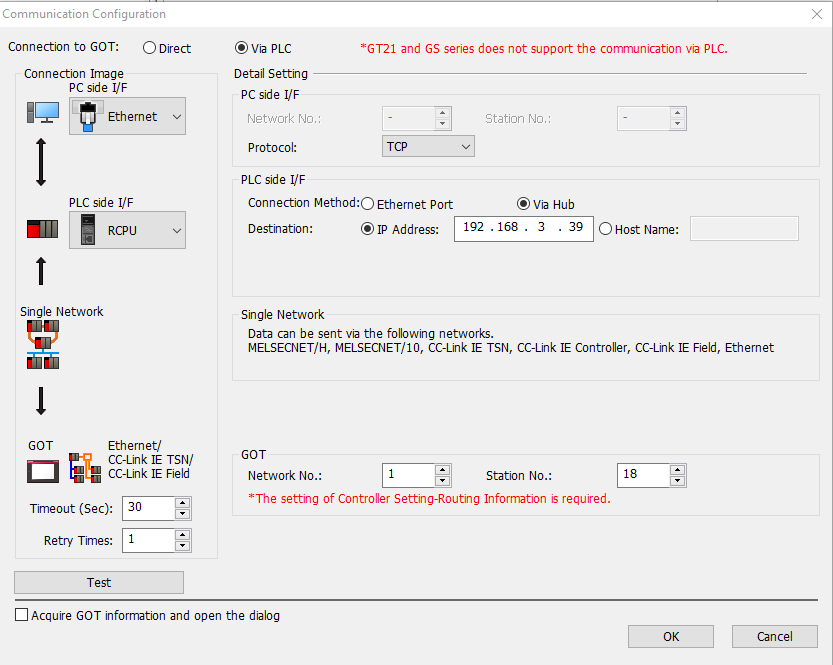

1.4 GT Designer3 communication configuration



2. PC -> RJ71EN -> RCPU-> GOT

In this case PC will be connected to RJ71EN and GOT to built-in ethernet port of RCPU

RCPU: 192.168.3.39 Network No. 2 Station No. 1

RJ71EN: 192.168.3.40 Network No. 1 Station No. 1



Routing: Network No.1 Station No. 1 -> Network No.2

2.1 Network configuration

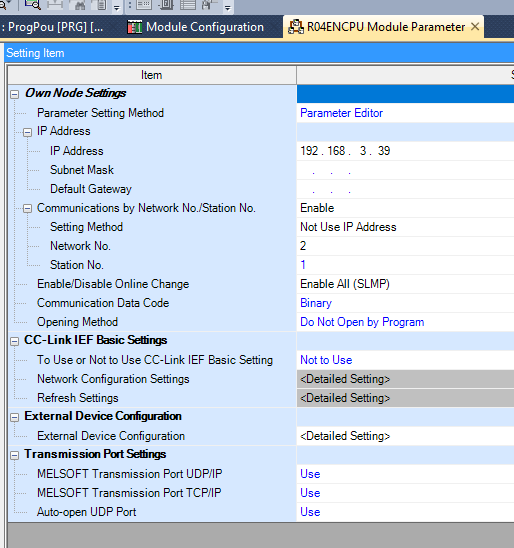

Configuration of RCPU built-in port:

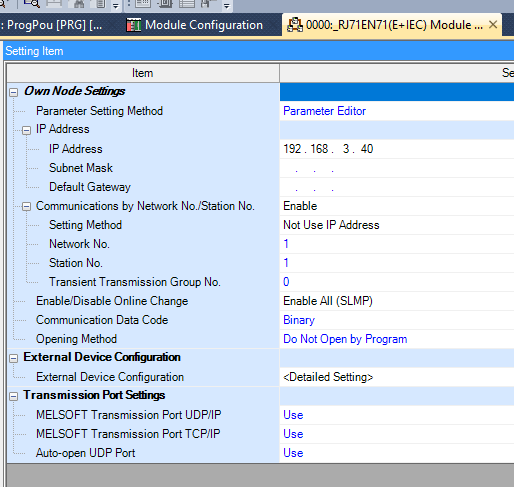

Configuration of RJ71EN:

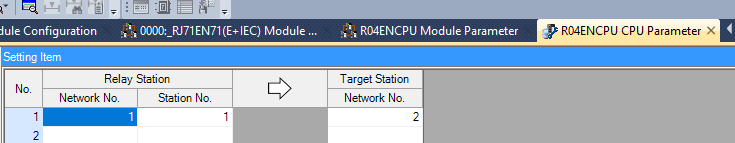

2.2 Routing configuration

In this case we will be routing Network No. 1 into Network No. 2:


2.3 Driver configuration

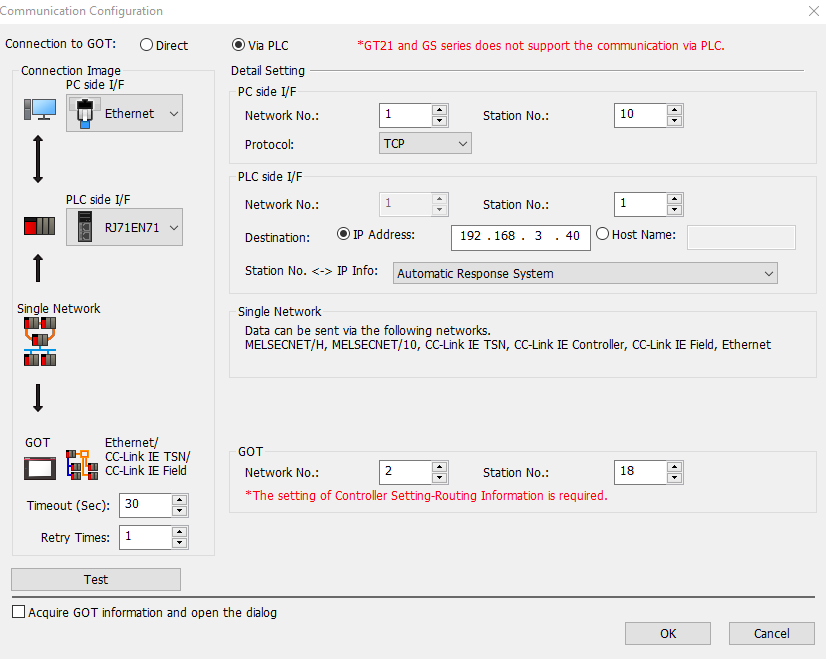

2.4 GT Designer3 communication configuration
